Heavy Duty Carbon Steel Bulkhead Union Compression Fitting - Equipped B4 Ring
Heavy Duty Carbon Steel Bulkhead Union Compression Fitting - Equipped B4 Ring
SKU:FIT-6fb7dc
Premium Heavy Duty Carbon Steel Bulkhead Union Compression Fitting - DIN 2353 Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union Compression Fitting - Equipped B4 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union Compression Fitting - Equipped B4 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Carbon Steel Bulkhead Union Compression Fitting with Equipped B4 Ring is designed for robust applications, featuring a tube diameter of 38.0 mm and a thread size of 52x2. With a nominal operating pressure of 315 bar, this fitting ensures reliable performance in demanding environments. Compliant with DIN 2353 standards, it offers exceptional durability and precision engineering, making it ideal for industrial and institutional use.

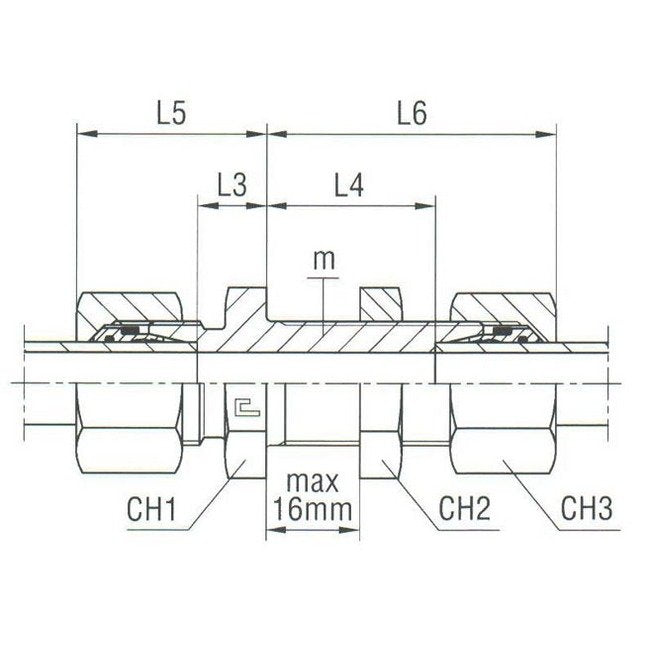

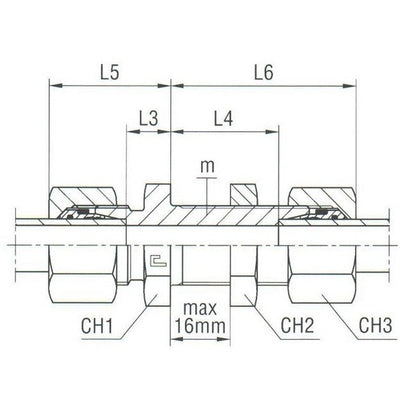

Product Specifications
Specifications Ch1
65 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications L3
22.0 mm
Specifications L4
37.0 mm
Specifications L5
53 mm
Specifications L6
68 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
