Heavy Duty Carbon Steel Bulkhead Union - Equipped B3 Ring
Heavy Duty Carbon Steel Bulkhead Union - Equipped B3 Ring
SKU:FIT-8c0ddd
High-quality Carbon Steel Bulkhead Union for heavy-duty applications, DIN 2353 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union - Equipped B3 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union - Equipped B3 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring is a top-of-the-line compression fitting designed for reliability and durability in high-pressure applications. With a tube diameter of 38.0mm and a nominal operating pressure of 315 bar, this fitting meets DIN 2353 standards for quality and performance. The precision engineering ensures a secure connection, while the compact design with optimized dimensions makes it ideal for tight spaces. Trust in this fitting for superior performance under heavy-duty conditions.

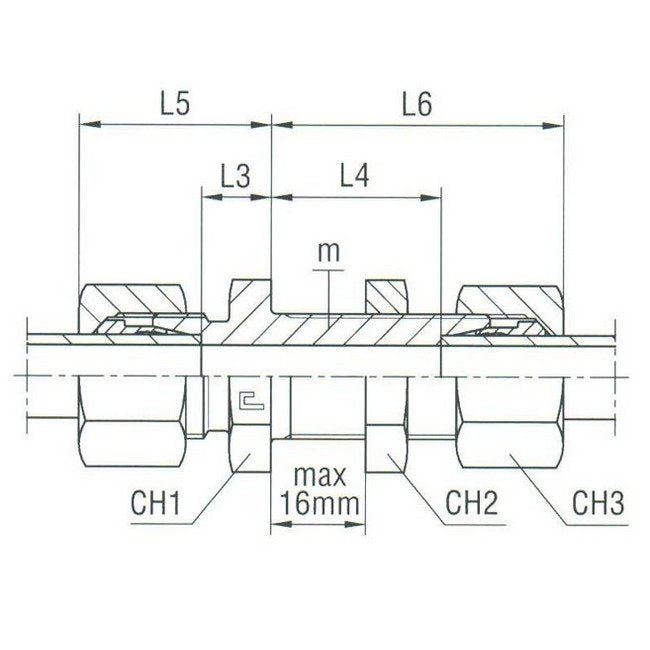

Product Specifications
Specifications Ch1
65 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications L3
22.0 mm
Specifications L4
37.0 mm
Specifications L5
53 mm
Specifications L6
68 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
