Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring - 6.0mm DIN 2353 Compression Fitting
Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring - 6.0mm DIN 2353 Compression Fitting
SKU:FIT-27c50a
High-quality Carbon Steel Bulkhead Union with Equipped B3 Ring for heavy-duty industrial use. Meets DIN 2353 standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring - 6.0mm DIN 2353 Compression Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring - 6.0mm DIN 2353 Compression Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Carbon Steel Bulkhead Union with Equipped B3 Ring is a top-tier fitting designed for industrial applications requiring robust pressure handling. With a Tube Diameter of 6.0mm and a Nominal Operating Pressure of 630 bar, this fitting ensures reliable performance under high-stress conditions. Meeting DIN 2353 standards, it guarantees precision and durability, making it an ideal choice for institutions seeking quality and compliance.

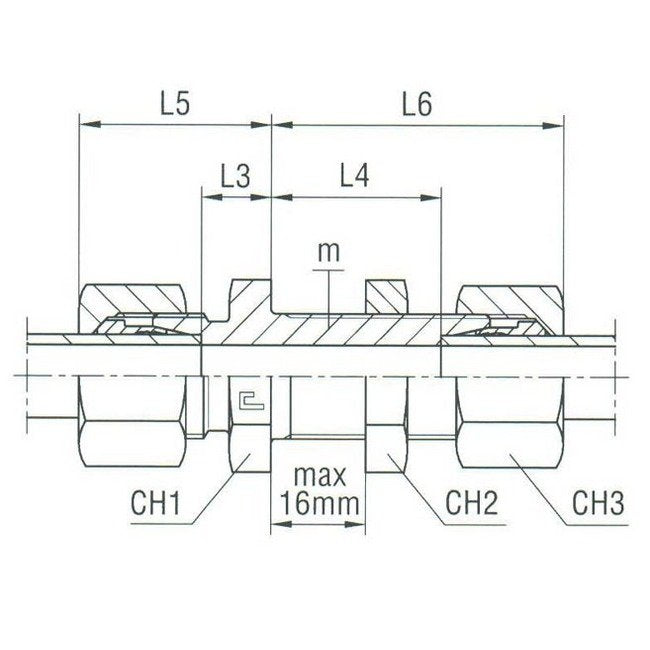

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications L3
12.0 mm
Specifications L4
29 mm
Specifications L5
27 mm
Specifications L6
44 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
