Heavy Duty Carbon Steel Bulkhead Union with Equipped B4 Ring
Heavy Duty Carbon Steel Bulkhead Union with Equipped B4 Ring
SKU:FIT-10d64e
Rugged Carbon Steel Bulkhead Union for High Pressure Applications, DIN 2353 Compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union with Equipped B4 Ring
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union with Equipped B4 Ring
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

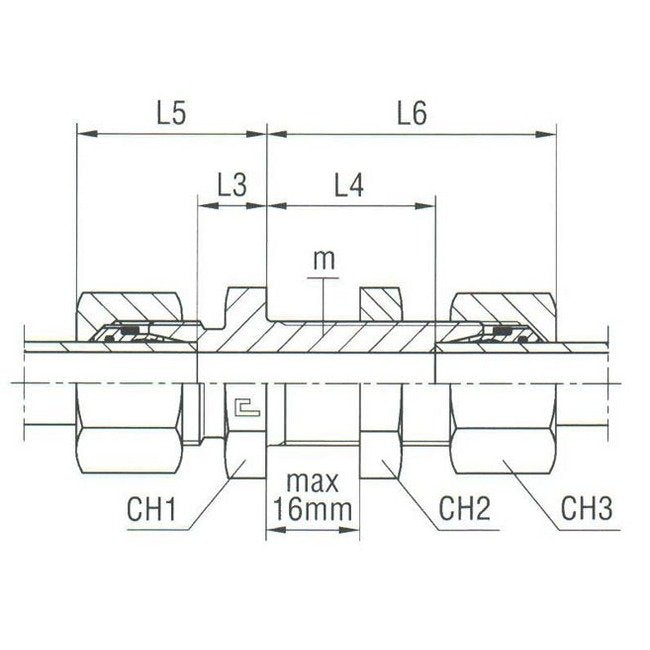

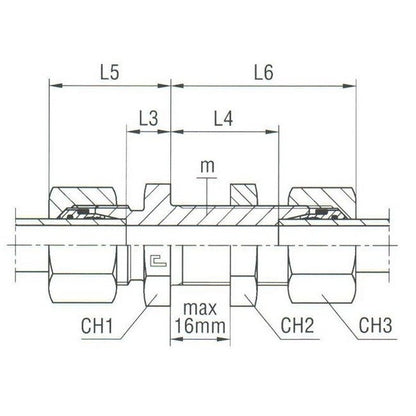

The Heavy Duty Carbon Steel Bulkhead Union with Equipped B4 Ring is a dependable and durable fitting designed for industrial applications. Crafted from high-quality carbon steel, this fitting ensures reliable performance under high pressure conditions, with a nominal operating pressure of 630 bar. Meeting DIN 2353 standards, this Bulkhead Union features precise specifications such as a 14.0 mm tube diameter and 22x1.5 mm thread size. Its compact design with dimensions L3: 17.0 mm, L4: 32.0 mm, L5: 35 mm, L6: 50 mm, CH1: 30 mm, CH2: 30 mm, CH3: 27 mm makes it ideal for restricted spaces while maintaining structural integrity.
Product Specifications
Specifications Ch1
30 mm
Specifications Ch2
30 mm
Specifications Ch3
27 mm
Specifications L3
17.0 mm
Specifications L4
32.0 mm
Specifications L5
35 mm
Specifications L6
50 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
