Heavy Duty Carbon Steel Equal Cross - 14.0mm (630 bar) - DIN 2353 Compression Fitting

Name: Heavy Duty Carbon Steel Equal Cross - 14.0mm (630 bar) - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-34d261
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-34d261

Robust Heavy Duty Equal Cross - 14.0mm (630 bar) - For Secure Industrial Connections

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

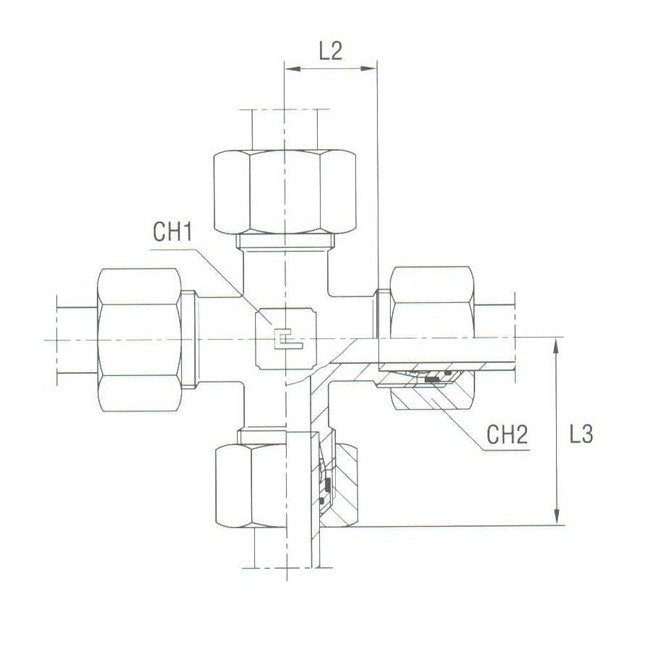

The Heavy Duty Carbon Steel Equal Cross with a tube diameter of 14.0mm and a nominal operating pressure of 630 bar is a robust compression fitting that ensures secure connections in demanding industrial applications. Made to meet DIN 2353 standards, this fitting features precise dimensions with L2: 22mm, L3: 40mm, CH1: 19.0mm, and CH2: 27mm. Its durable construction and high-pressure resistance make it ideal for critical systems where reliability is paramount.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

27 mm

Specifications L2

22 mm

Specifications L3

40 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Heavy Duty Carbon Steel Equal Cross - 14.0mm (630 bar) - DIN 2353 Compression Fitting
