Heavy Duty Carbon Steel Equal Cross - DIN 2353 Compression Fitting
Heavy Duty Carbon Steel Equal Cross - DIN 2353 Compression Fitting
SKU:FIT-46efe3
High-quality carbon steel Equal Cross fitting for 38.0mm tubes, complies with DIN 2353 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Equal Cross - DIN 2353 Compression Fitting
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Equal Cross - DIN 2353 Compression Fitting
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

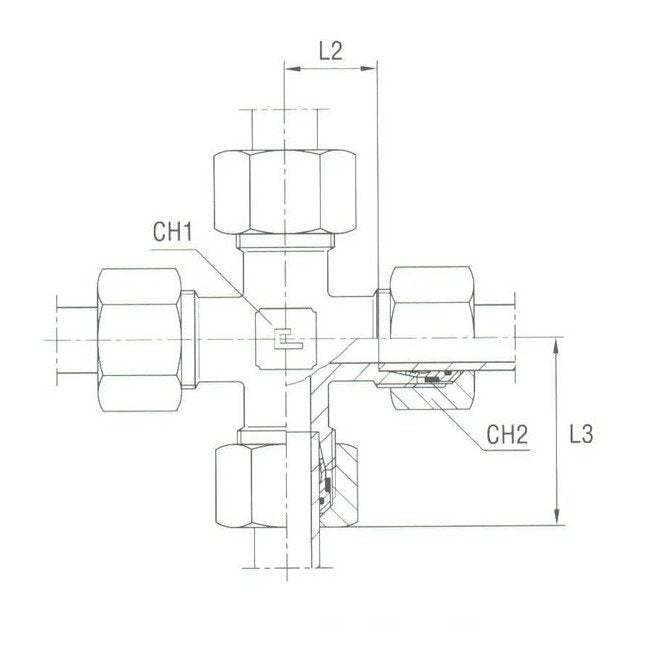

The Equal Cross - Equipped B4 Ring is a high-quality heavy-duty fitting designed for a tube diameter of 38.0 mm with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this fitting ensures reliable performance in demanding environments. Meeting DIN 2353 standards, its precise dimensions including L2 at 41.0 mm and L3 at 72 mm, along with CH1 and CH2 measurements of 50 mm and 60 mm respectively, make it a dependable choice for hydraulic systems.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
60 mm
Specifications L2
41.0 mm
Specifications L3
72 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
