Heavy Duty Carbon Steel Male Stud Coupling with O-Ring - Metric Parallel Thread
Heavy Duty Carbon Steel Male Stud Coupling with O-Ring - Metric Parallel Thread
SKU:FIT-76cccc
High-performance male stud coupling for heavy-duty applications, featuring carbon steel construction and DIN 2353 compliance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Male Stud Coupling with O-Ring - Metric Parallel Thread
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Male Stud Coupling with O-Ring - Metric Parallel Thread
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Equipped B3 Ring is designed for heavy-duty applications, constructed from high-quality carbon steel. With a tube diameter of 16.0mm and a maximum operating pressure of 315 bar, this coupling ensures reliable performance under tough conditions. Compliant with DIN 2353 standards, it offers precise fittings for seamless integration.

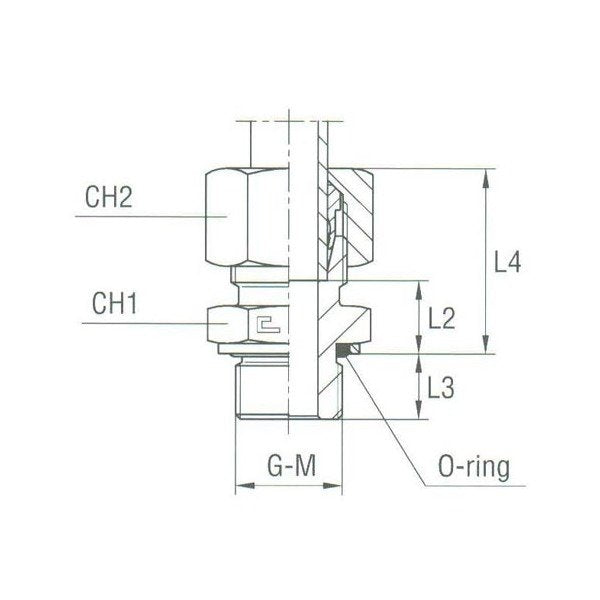

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications L2
18.4 mm
Specifications L3
13.6 mm
Specifications L4
36.9 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
