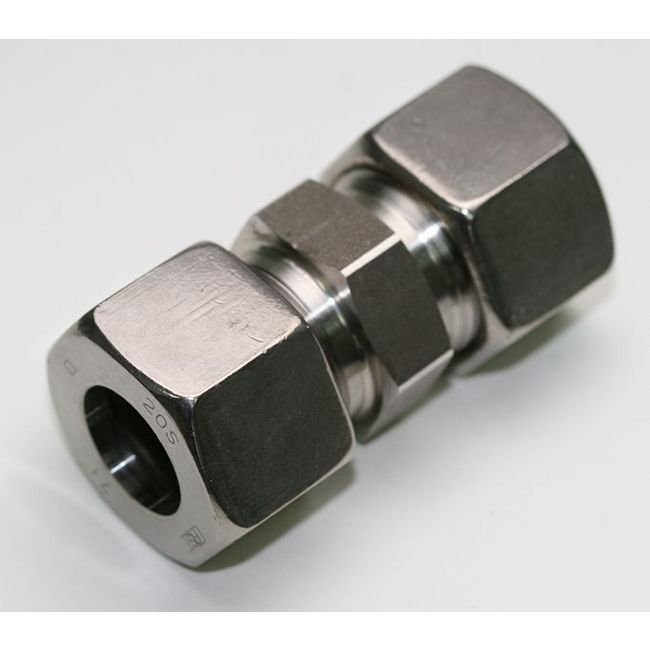

The Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring is designed for robust performance in industrial applications. Made from high-quality carbon steel, it withstands heavy-duty usage with a nominal operating pressure of 630 bar. This coupling ensures a secure fit with its precise dimensions and complies with DIN 2353 standards, making it an ideal choice for demanding environments.

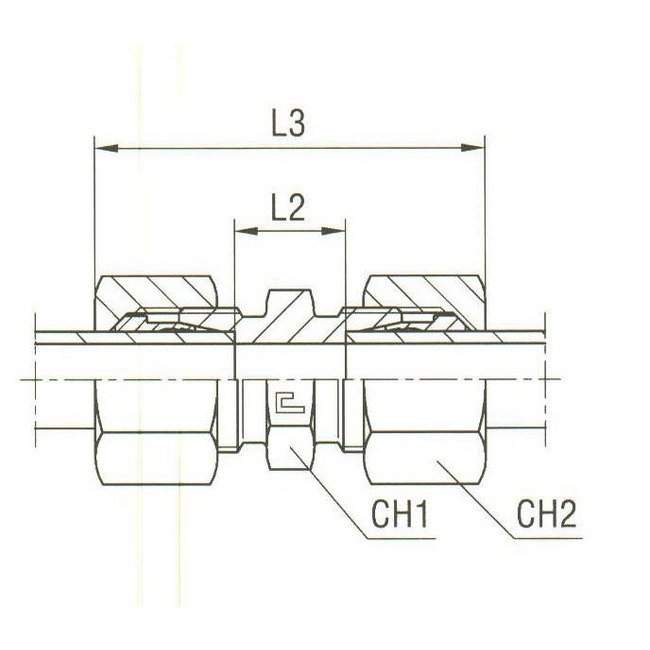

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications L2
26.0 mm
Specifications L3
74 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
