Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring
Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring
SKU:FIT-dba7aa
High-pressure carbon steel straight coupling with DIN 2353 compliance for industrial reliability.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring
$35.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Carbon Steel Straight Coupling with Equipped B3 Ring is a robust and reliable fitting designed for demanding applications. With a tube diameter of 12.0mm and a nominal operating pressure of 630 bar, this coupling ensures secure connections in high-pressure environments. Compliant with DIN 2353 standards, it offers exceptional durability and performance. Ideal for industrial settings requiring precision and toughness.

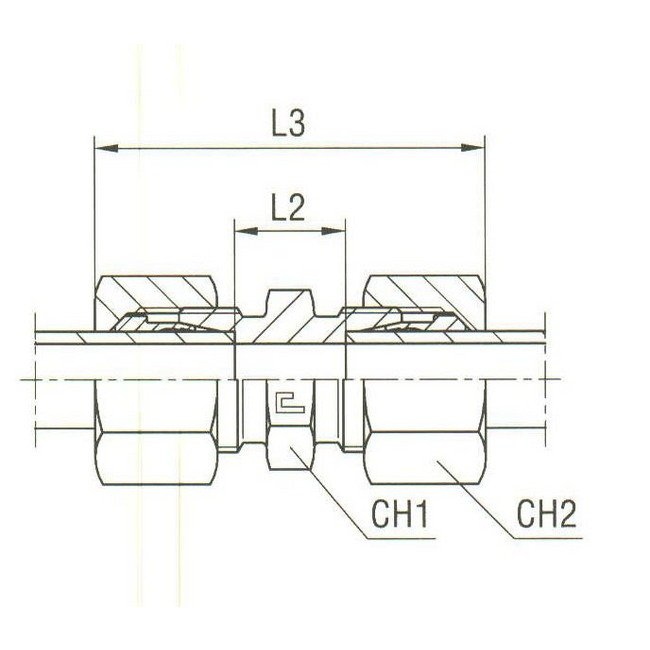

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
24 mm
Specifications L2
19.0 mm
Specifications L3
51 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
