Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring

Name: Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-ac393b
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-ac393b

Premium Heavy Duty Carbon Steel Straight Coupling with B4 Ring, DIN 2353 Compliant

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

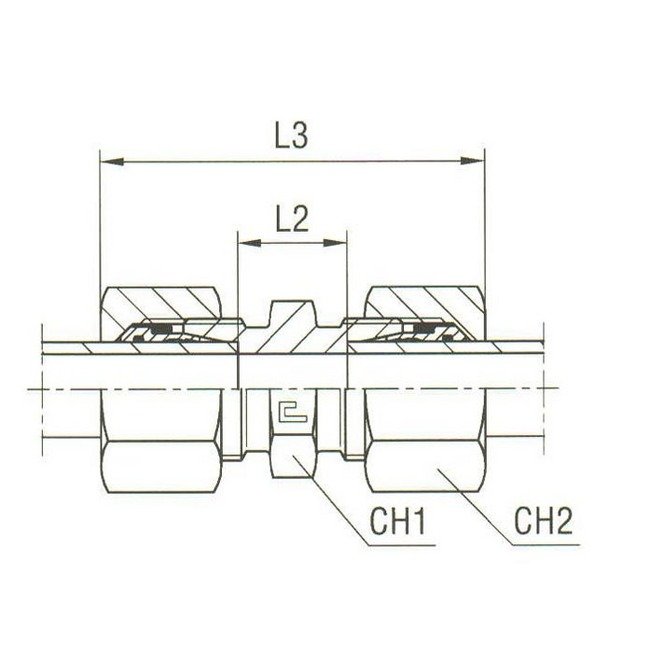

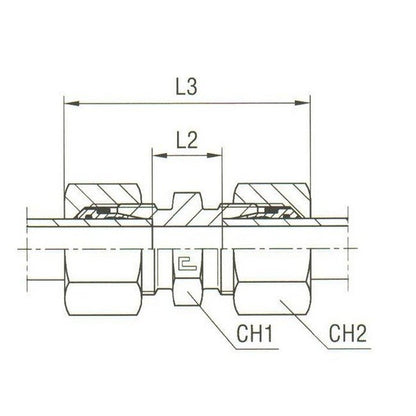

The Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring is a robust and reliable fitting designed for demanding industrial applications. Constructed from high-quality carbon steel, this fitting ensures durability and long-term performance. With a tube diameter of 16.0 mm and a nominal operating pressure of 630 bar, it meets the stringent DIN 2353 standards. The L2 dimension of 21.0 mm and L3 dimension of 57 mm provide precise fittings for seamless connections. This coupling, equipped with a B4 ring, offers secure and leak-free installations, making it a top choice for various hydraulic systems.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

30 mm

Specifications L2

21.0 mm

Specifications L3

57 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring
