Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
SKU:FIT-6d155d
Durable Heavy Duty Carbon Steel Straight Coupling for high-pressure hydraulic systems. DIN 2353 compliant.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
$35.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

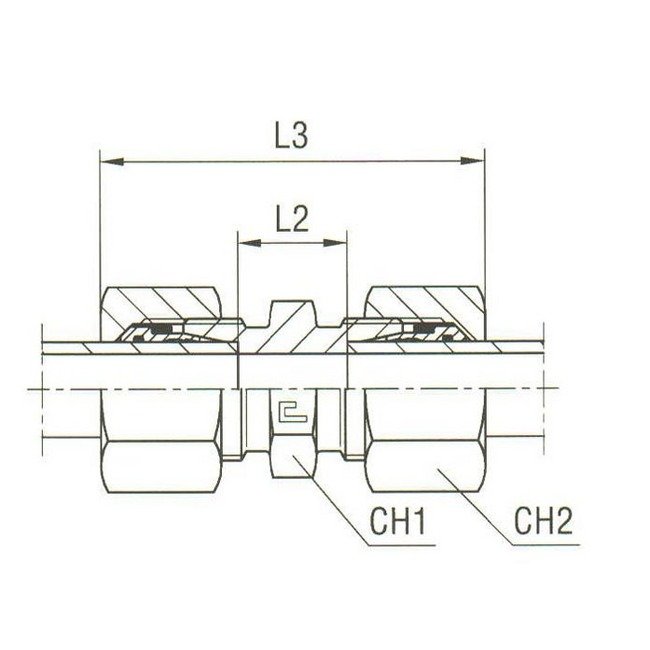

The Heavy Duty Carbon Steel Straight Coupling is a robust and reliable component designed for industrial hydraulic systems. With a Tube Diameter of 30.0 mm and a Nominal Operating Pressure of 630 bar, this coupling ensures secure connections in high-pressure environments. Featuring precise dimensions with L2: 27.0 mm, L3: 80 mm, CH1: 46 mm, CH2: 50 mm, and compliant with DIN 2353 standards, it guarantees performance and durability.
Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
50 mm
Specifications L2
27.0 mm
Specifications L3
80 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
