Heavy Duty Cast Aluminum Surface Mounting Box - HD6000 Type

Name: Heavy Duty Cast Aluminum Surface Mounting Box - HD6000 Type
Brand: Hope Electrical Products Co., Inc.
SKU: HD6-6549e0
Price: 799.99 USD
Availability: OutOfStock

SKU:HD6-6549e0

Heavy Duty Cast Aluminum Surface Mounting Box for severe weathertight installations, ideal for submerged service in demanding environments.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

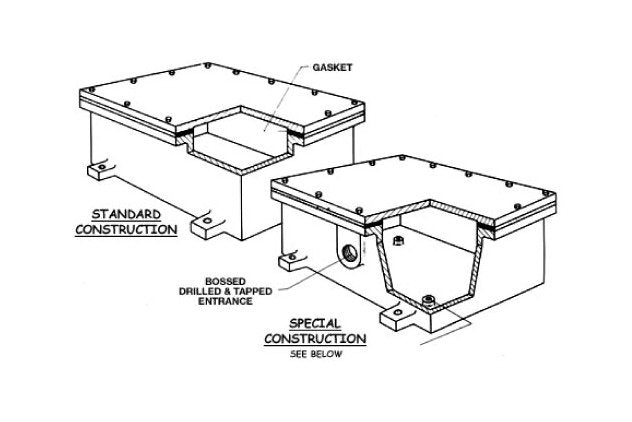

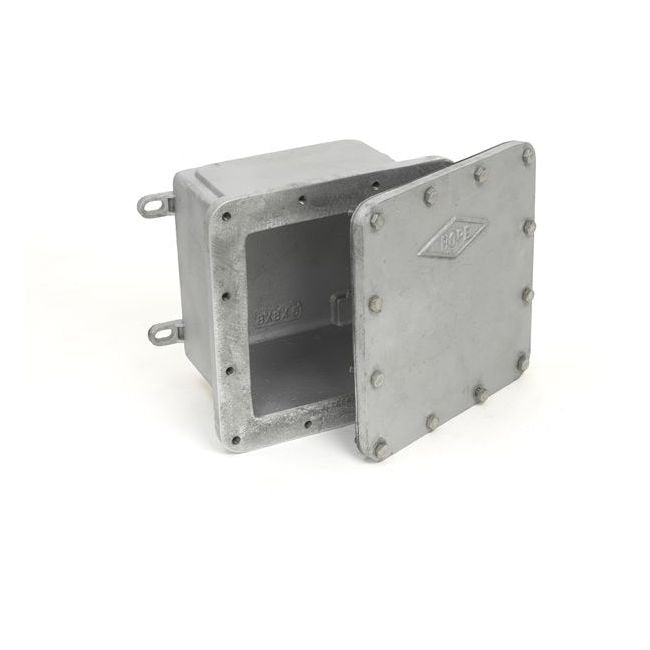

The Heavy Duty Cast Aluminum Surface Mounting Box - HD6000 Type is designed for the most severe weathertight and watertight installations. Constructed with heavy cast aluminum and gasketed flanges, this box is ideal for submersion service in demanding environments like flooded manholes, docks, underground, and sub-stations. Featuring protected steel cap screws and customizable options like monel, bronze, or stainless steel, it ensures durability and watertight performance. With optional Vellumoid gasket and bosses for five threads, it meets hazardous location requirements and offers excellent mounting flexibility for panels, relays, and transformers.

Product Specifications

Specifications Approx Wall Thickness

5/8 in.

Specifications Approx Weight

413.79 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

12 in.

Specifications Inside Length

36 in.

Specifications Inside Width

36 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Type

HD6000
