Heavy Duty Cast Iron Outdoor Electrical Enclosure - HD6000 Type
Heavy Duty Cast Iron Outdoor Electrical Enclosure - HD6000 Type
SKU:HD6-e4bdee
Rugged HD6000 Type Heavy Duty Cast Iron Box for extreme weather installations. Ideal for submerged service in hazardous locations. Neoprene gasket, plated steel cap screws. Interior mounting buttons for secure installations.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy Duty Cast Iron Outdoor Electrical Enclosure - HD6000 Type
$899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Cast Iron Outdoor Electrical Enclosure - HD6000 Type
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

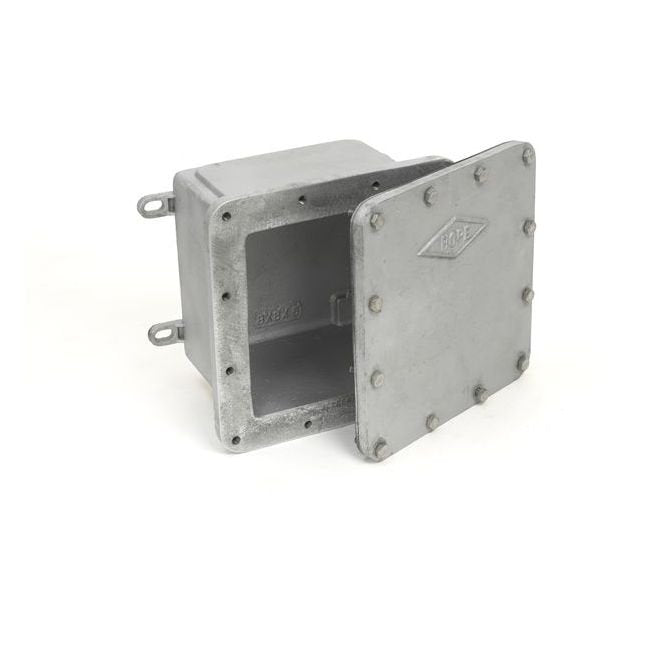

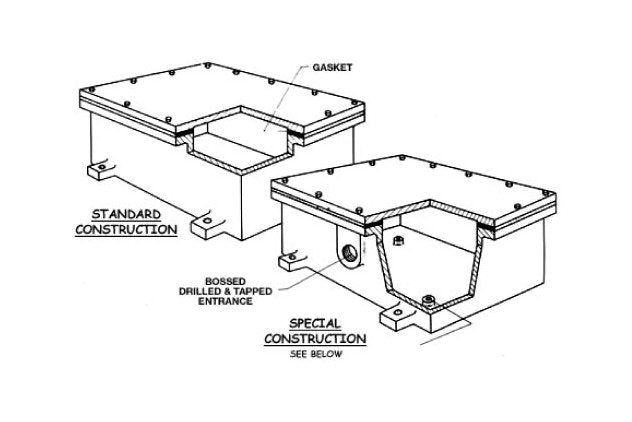

The Heavy Duty Cast Iron Outdoor Electrical Enclosure, HD6000 Type, is a rugged surface-mounted box designed for extreme weather conditions. Constructed with heavy-walled cast iron, this enclosure is ideal for submerged installations in flooded manholes, docks, piers, seawalls, and sub-stations. Equipped with neoprene gasket packing and plated steel cap screws, it ensures weathertight and watertight performance under high water heads. The HD6000 type meets Class II, Groups E, F, and G hazardous location standards when equipped with Vellumoid gasket and bossed conduit entrances. Interior mounting buttons provide a secure method for mounting devices like panels and relays. Upgrade options include drilling, tapping, special gaskets, and bronze hinges.
Product Specifications
Specifications Approx Wall Thickness
5/8 in.
Specifications Approx Weight
525 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
9 in.
Specifications Inside Length
29 in.
Specifications Inside Width
27 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
HD6000
