Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
SKU:HD6-c18561
Rugged HD6000 Type Heavy Duty Cast Iron Box for extreme weather conditions, ideal for submersion service & hazardous locations.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

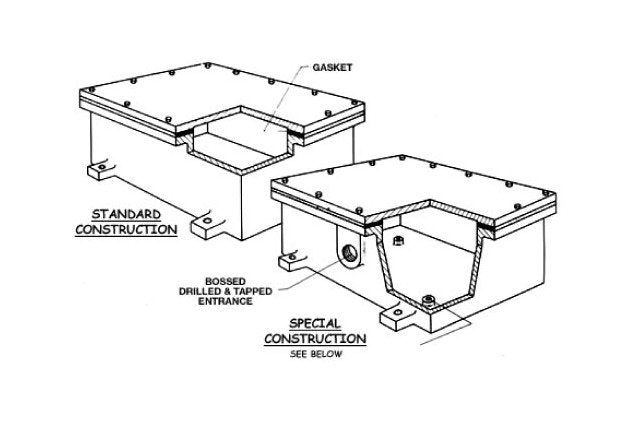

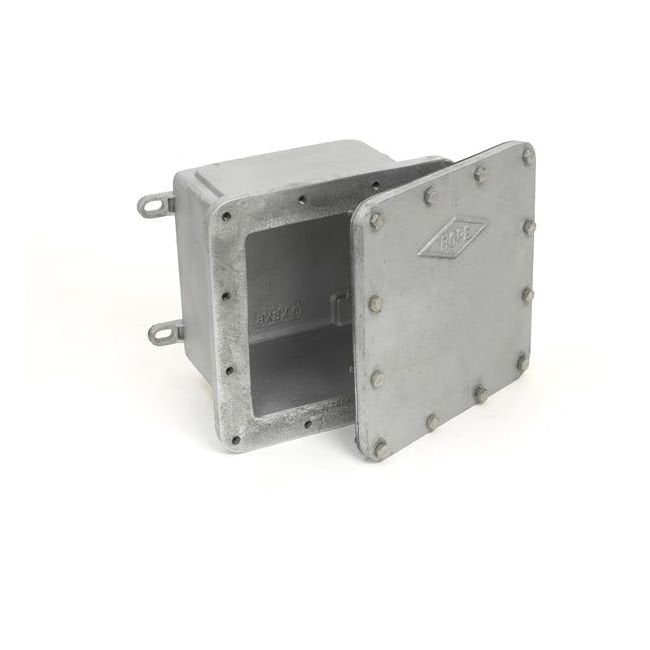

The Heavy Duty Cast Iron Surface Mounting Box, classified under the HD6000 Type, is a rugged and weatherproof solution designed for the most demanding environments. Constructed with heavy walled cast iron and gasketed flanges, this box ensures optimal protection against water and weather elements. It features plated steel cap screws, neoprene gaskets, and four mounting lugs for secure installation. Ideal for submersion services, these boxes have been successfully deployed in various challenging locations such as flooded manholes, docks, and sub-stations. With options for special gaskets, different screw materials, and customizable features like drilling and tapping, this box offers versatility and reliability for industrial and institutional applications.
Product Specifications
Specifications Approx Wall Thickness
7/16 in.
Specifications Approx Weight
230 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
10 in.
Specifications Inside Length
24 in.
Specifications Inside Width
12 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
HD6000
