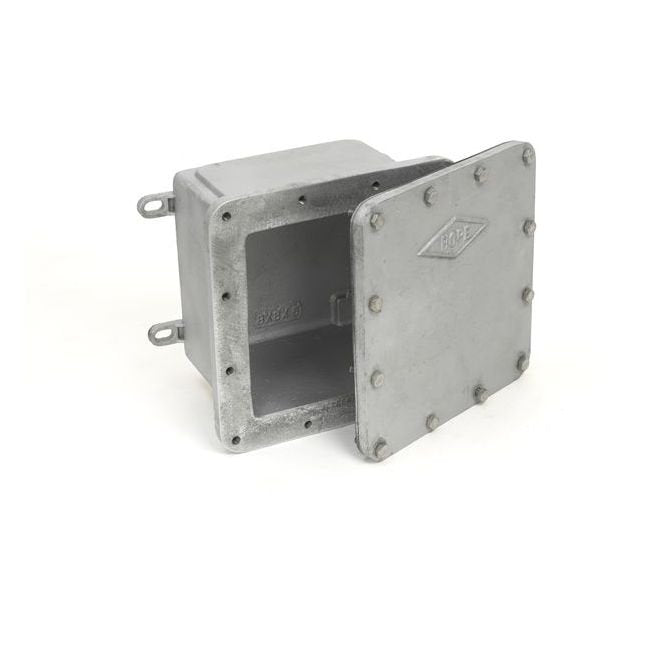

Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type

Name: Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
Brand: Hope Electrical Products Co., Inc.
SKU: HD6-e7477d
Price: 349.99 USD
Availability: OutOfStock

SKU:HD6-e7477d

Heavy Duty HD6000 Cast Iron Box - Ideal for severe weathertight and watertight installations. Suitable for hazardous locations.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

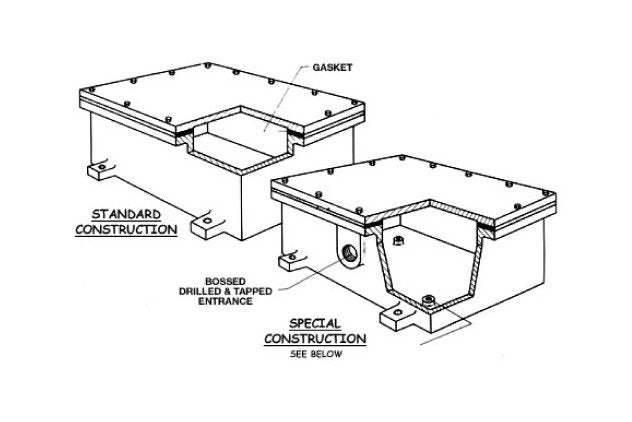

The Heavy Duty Cast Iron Surface Mounting Box, HD6000 Type, is a robust solution designed for the most severe weathertight and watertight installations. Made of heavy walled cast iron with plated steel cap screws and neoprene type packing for gasket, this box is ideal for submerged service and can withstand high heads of water. With the option for specialized extras like drilling and tapping, bosses for five threads, and interior mounting buttons, this box offers versatile installation possibilities. Suitable for Class II, Groups E, F, and G hazardous locations with the right configurations, it provides reliable protection for electrical components in various settings.

Product Specifications

Specifications Approx Wall Thickness

7/16 in.

Specifications Approx Weight

104 lbs

Specifications Construction

cast iron

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

7 in.

Specifications Inside Length

15 in.

Specifications Inside Width

9 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Type

HD6000
