Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
SKU:HD6-8aa8db
Heavy Duty Cast Iron Surface Mounting Box for Extreme Weathertight Installations
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
$799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Cast Iron Surface Mounting Box - HD6000 Type
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

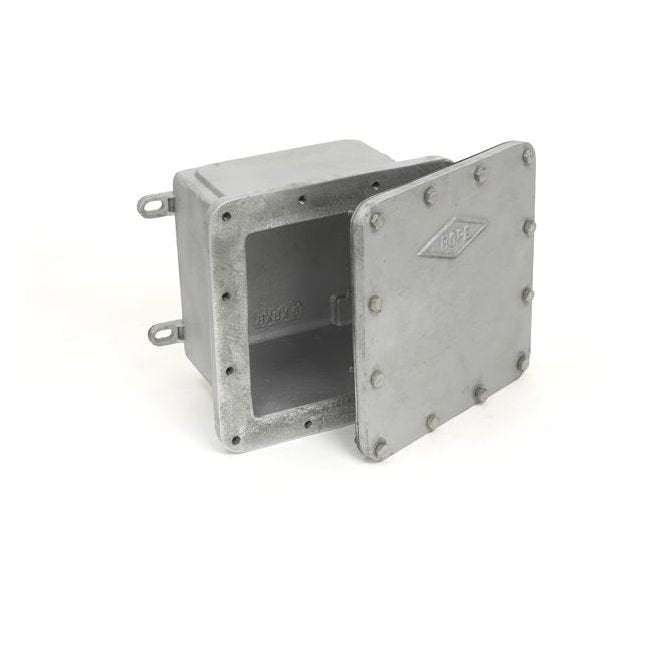

The Heavy Duty Cast Iron Surface Mounting Box, HD6000 Type, is a robust solution designed for extreme weathertight and watertight installations. Constructed with heavy-walled cast iron and featuring plated steel cap screws, neoprene type packing for gasket, and four mounting lugs, this box is ideal for submerged environments like manholes, docks, piers, and sub-stations. It remains watertight under high water heads and can be customized with extras like drilling, tapping, and special gaskets. Suitable for hazardous locations, this box is compliant with Class II, Groups E, F, and G standards.
Product Specifications
Specifications Approx Wall Thickness
7/16 in.
Specifications Approx Weight
158 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped

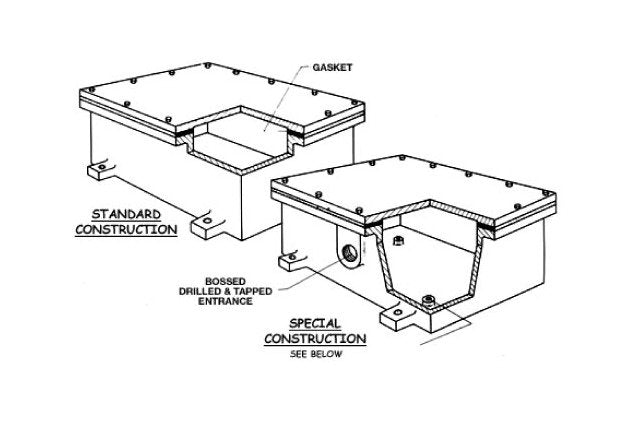

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
4 in.
Specifications Inside Length
19 in.
Specifications Inside Width
14 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
HD6000
