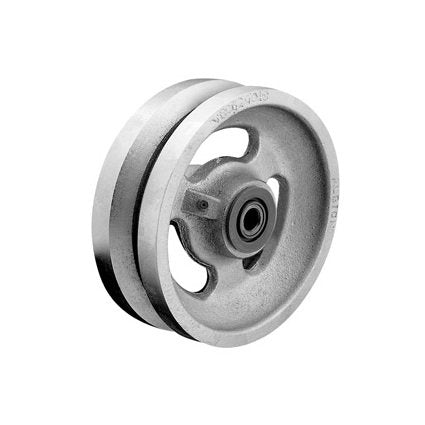

Heavy Duty Cast Iron V-Groove Wheel
Heavy Duty Cast Iron V-Groove Wheel
SKU:WHE-a1356f
Durable Heavy Duty Cast Iron V-Groove Wheel for industrial applications, designed for precision tracking and maximum load capacity.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy Duty Cast Iron V-Groove Wheel
$79.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Cast Iron V-Groove Wheel
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Cast Iron V-Groove Wheel is a robust solution designed for industrial applications, featuring a machined wheel face and V-groove made from durable cast iron. With a relief groove that equalizes load distribution on angle tracks, these wheels ensure smooth and reliable operation. Engineered for precision, the wheel face and bore are machined to guarantee concentricity for optimal tracking. Suitable for both track and flat surfaces, the VL variant offers greater capacity with its larger bore. Track alignment is crucial for maximizing performance with these V-groove wheels, making them ideal for heavy-duty usage in various industrial settings.
Product Specifications
Specifications Bearing Id In
1-1/4
Specifications Bore Id In
1-15/16
Specifications Hub Length In
3-1/4
Specifications Load Rating Lbs
2500
Specifications Load Rating Range Lbs
1500-4999
Specifications Temperature Range
-40 to +800
Specifications Tread Width In
2-1/2
Specifications Weight
15-1/2
Specifications Wheel Bearing Type
Roller
Specifications Wheel Description
Metal, Cast Iron
Specifications Wheel Diameter In
8.00
Specifications Wheel Finish
Silver
