Heavy Duty Cast Iron V-Groove Wheel
Heavy Duty Cast Iron V-Groove Wheel
SKU:WHE-3aae54
Heavy Duty Cast Iron V-Groove Wheel with precision-tapered roller bearing, 2500 lbs load rating, and -40 to +800 degrees temperature range.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

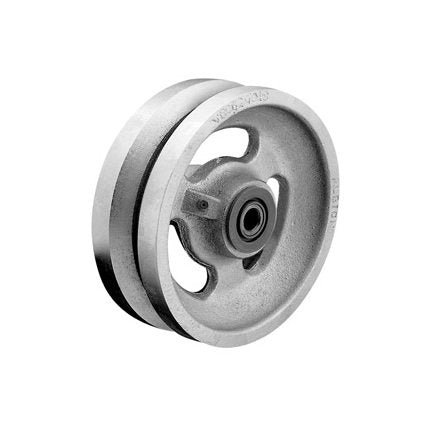

The Heavy Duty Cast Iron V-Groove Wheel is designed for reliable and durable performance. Crafted from heavy-duty cast iron, this wheel features a precision-tapered roller bearing type for smooth operation. With a load rating of 2500 lbs and a temperature range from -40 to +800 degrees, it ensures consistent performance in various conditions. The V-groove design, along with the relief groove, helps in equalizing loads and maintaining proper tracking. Ideal for both track and flat surfaces, the VL variant offers increased capacity with its larger bore. Ensure precise track alignment for optimal performance.
Product Specifications
Specifications Bearing Id In
3/4
Specifications Bore Id In
1-15/16
Specifications Hub Length In
3-1/2
Specifications Load Rating Lbs
2500
Specifications Load Rating Range Lbs
1500-4999
Specifications Temperature Range
-40 to +800
Specifications Tread Width In
3
Specifications Weight
16.5
Specifications Wheel Bearing Type
Precision Tapered Roller
Specifications Wheel Description
Metal, Cast Iron
Specifications Wheel Diameter In
8.00
Specifications Wheel Finish
Silver
