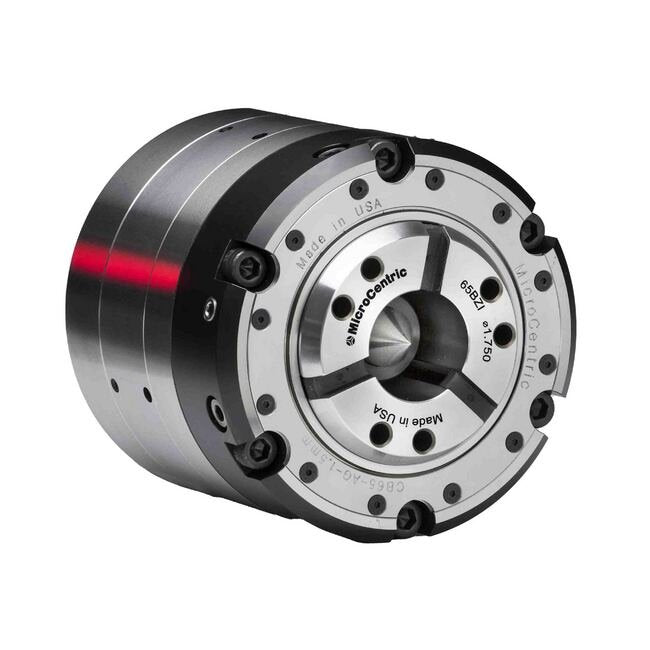

The Heavy-Duty CB-AG Collet Chucks feature a unique compensating pull back design with a floating collet seat, ideal for precision machining of shafts between centers. Mounting in the ID of the chuck body ensures secure part locators placement, while radial adjusting screws offer precise center alignment within .0002”. With a total compensation of 1.5mm, these collet chucks guarantee accuracy and rigidity, boasting a compact, long-lasting design that minimizes maintenance needs. Hardened and ground components ensure durability and high performance for extended usage in industrial settings.
Product Specifications

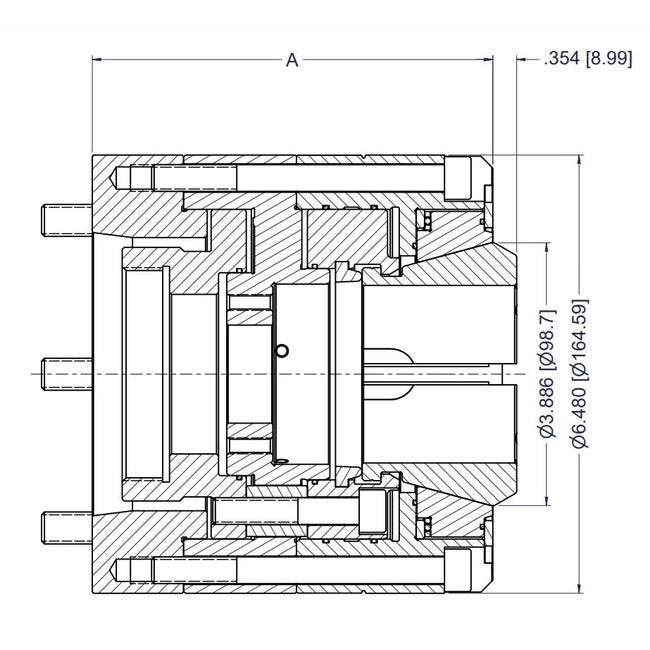

Specifications A Dimension
5.375 in | 136.53 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 204
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M65x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Total Compensation
.060 in | 1.50 mm
Specifications Weight
38.71 lb | 17.56 kg
