Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

SKU:WIR-90fbc7

Premium Chain Shackle, Hot Dip Galvanized, Heavy Duty, Conforms to Federal Standards, 1 1/2" Size

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

$129.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

Heavy Duty Chain Shackles 1 1/2" Hot Dip Galvanized

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

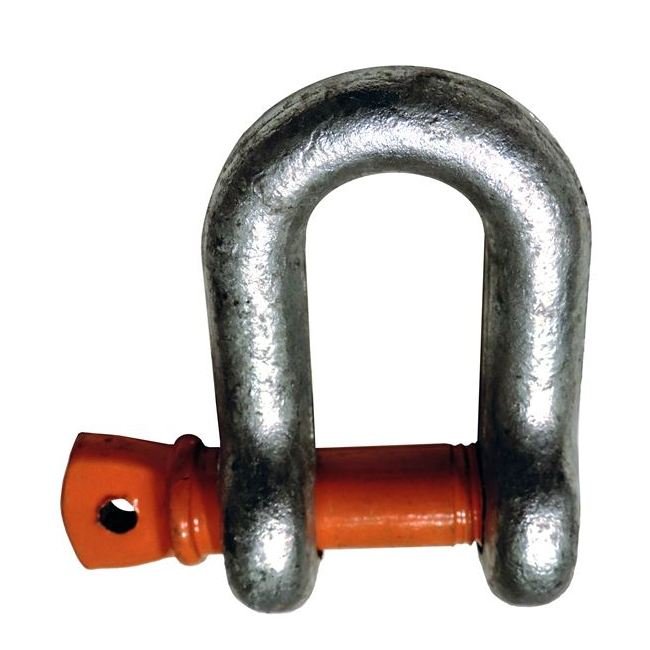

The Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged is a premium-grade shackle that conforms to Federal Specification RR-C-271D, Type IVB, Grade A, Class 2 standards. With an impressive ultimate load of 6 times the working load limit and a safety factor of 2.2, these shackles are quenched, tempered, and feature an alloy pin for maximum durability. Ideal for lifting and towing applications, this shackle ensures reliable performance and safety. Measuring 1 1/2" with a working load limit of 17 tons, it is designed for heavy-duty use.

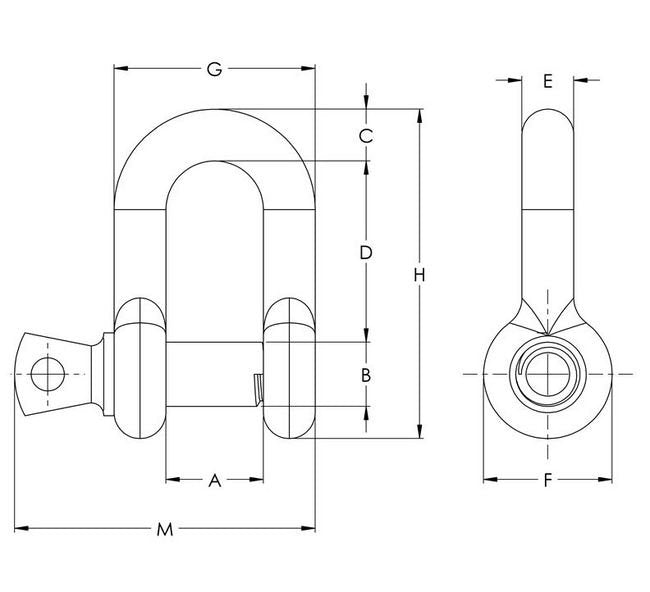

Product Specifications

Specifications A In
2.38
Specifications B In
1.63
Specifications C In
1.62
Specifications D In
4.81
Specifications E In
1.5
Specifications F In
3.62
Specifications G In
5.38
Specifications H In
9.06
Specifications M In
7.35
Specifications Nominal Size In
1 1/2
Specifications Weight Lbs
15.95
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332999
PSC
5340
