Heavy-Duty Checkered Sidewalk Box - H5800 Type

Name: Heavy-Duty Checkered Sidewalk Box - H5800 Type
Brand: Hope Electrical Products Co., Inc.
SKU: H58-706959
Price: 349.99 USD
Availability: OutOfStock

SKU:H58-706959

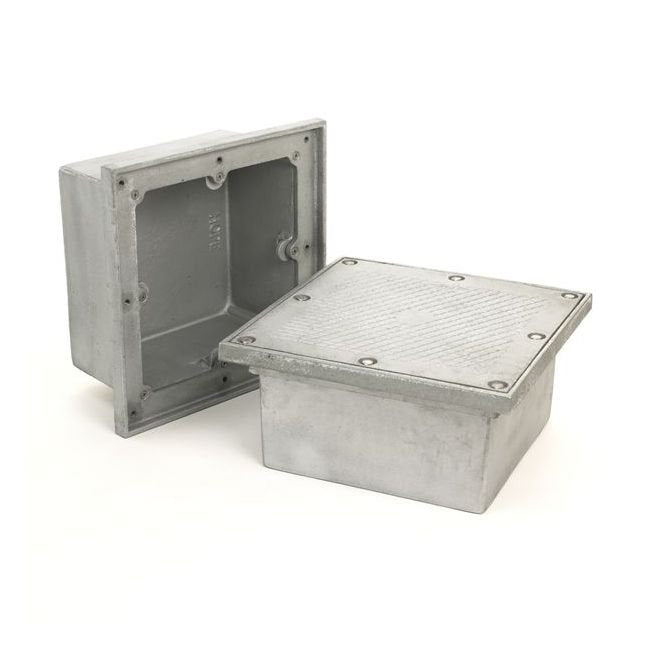

Durable cast iron sidewalk box with checkered non-slip cover for heavy pedestrian traffic. NEMA 4 - NEMA 3R compliant. Ideal for high-traffic areas.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

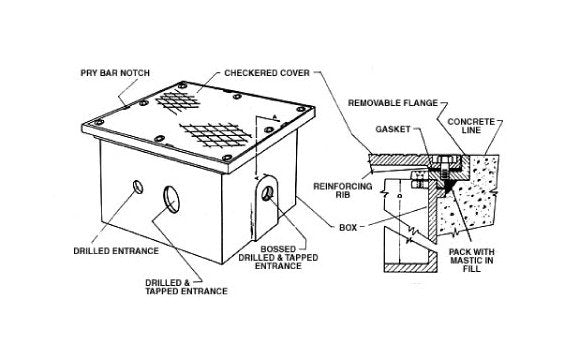

The Heavy-Duty Checkered Sidewalk Box, Type H5800, is crafted from durable cast iron, offering NEMA 4 and NEMA 3R compliance as per U/L Std. 50. Featuring a sturdy three-piece construction, a cross-ribbed checkered cover ensures safe pedestrian passage while withstanding heavy traffic. With interchangeable flanges and covers, this box is easy to maintain without disrupting the conduit system. Designed for sidewalks in high-traffic areas like bridges, dams, and airports, it also offers the option for galvanized checkered covers for enhanced durability. For additional customization, cast aluminum construction is available by request.

Product Specifications

Specifications Approx Wall Thickness

3/8 in.

Specifications Approx Weight

91.38 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

12 in.

Specifications Inside Length

30 in.

Specifications Inside Width

12 in.

Specifications Mounting

Flush

Specifications Options

Galvanized checkered covers

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Type

H5800
