Heavy Duty Chromoly Steel Rod Ends
Heavy Duty Chromoly Steel Rod Ends
SKU:ROD-ea4847
Premium Chromoly Steel Rod Ends - Superior strength, durability & compliance. Ideal for automotive, industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Chromoly Steel Rod Ends are precision-engineered to meet the rigorous demands of automotive vehicles, industrial machines, and various industries. Crafted from 6061-T6 Aluminum body material and 52100 Bearing Steel ball material with HRC58-64 Hard Chrome Plating, these rod ends offer exceptional strength and durability. Available in both Male and Female variants, with Left and Right options. With specifications meeting stringent industry standards, including a Static Radial Load capacity of 17,955 lbs and compliance with Prop 65 regulations, these rod ends ensure reliable performance and safety across diverse applications.

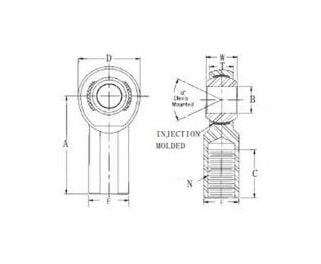

Product Specifications
Specifications Approx Weight
0.45 lbs
Specifications A Length 0015 0015
2.500 in
Specifications A Mis Angle Ref
16
Specifications Ball
1.125 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.500 in
Specifications N Thread Unf 3a
5/8-18
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-10
Specifications Static Radial Load
17,955 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.562 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
