Heavy Duty Chromoly Steel Rod Ends
Heavy Duty Chromoly Steel Rod Ends
SKU:ROD-690a26
Premium Chromoly Steel Rod Ends for automotive and industrial applications. Hard chrome plated for durability and strength. UNF 3A threaded design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The XM/XF Rod Ends are meticulously engineered from Chromoly Steel, heat treated for durability and hard chrome plated for longevity. These precision components feature 52100 Bearing Steel balls, ensuring exceptional performance under heavy loads. Ideal for automotive vehicles, industrial machines, and various industries, these Rod Ends offer superior strength and reliability. With a UNF 3A threaded design and compliance with rigorous industry standards, these rod ends guarantee top-notch quality and performance.

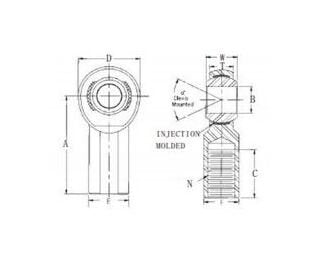

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.062 in
Specifications A Mis Angle Ref
13
Specifications Ball
0.437 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.1900 in
Specifications C Length 0062 0031
0.562 in
Specifications D Dia 0010 0010
0.625 in
Specifications N Thread Unf 3a
10-32
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-3
Specifications Static Radial Load
3,733 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.250 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.312 in
