Heavy Duty Chromoly Steel Rod Ends - Female Thread, Chrome Plated
Heavy Duty Chromoly Steel Rod Ends - Female Thread, Chrome Plated
SKU:ROD-828fa1
Durable Chromoly Steel Rod Ends for automotive and industrial use, meeting high standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends - Female Thread, Chrome Plated
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends - Female Thread, Chrome Plated
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles and industrial machines with our Heavy Duty Chromoly Steel Rod Ends. Made of Chromoly Steel with Hard Chrome Plating, these rod ends ensure durability and performance. The ball material is 52100 Bearing Steel, heat-treated for HRC58-64 hardness. With precise specifications and a versatile Male/Female, Left/Right variant, these rod ends are designed to withstand high static radial loads, meeting industry standards for reliability.

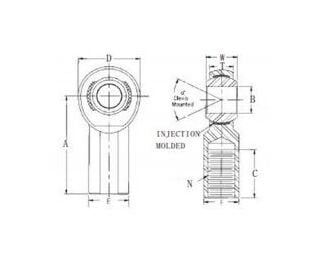

Product Specifications
Specifications Approx Weight
0.06 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.750 in
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-4
Specifications Static Radial Load
6,190 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.281 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
