Heavy Duty Chromoly Steel Rod Ends XM/XF
Heavy Duty Chromoly Steel Rod Ends XM/XF
SKU:ROD-f7e3e0
High-quality Heavy Duty Chromoly Steel Rod Ends for automotive, industrial, and multiple industries. Durable, precise, and reliable under heavy loads.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends XM/XF
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends XM/XF
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Chromoly Steel Rod Ends XM/XF are precision-engineered for exceptional performance in automotive vehicles, industrial machines, and various industries. Crafted from 6061-T6 Chromoly Steel and featuring a 52100 Bearing Steel ball with HRC58-64 Hard Chrome Plating, these rod ends offer superior durability and strength. With dimensions meeting industry standards and a variety of variants available, these rod ends deliver reliable operation under heavy loads and high stress conditions. Ideal for a wide range of applications, these rod ends are trusted for their quality and performance.

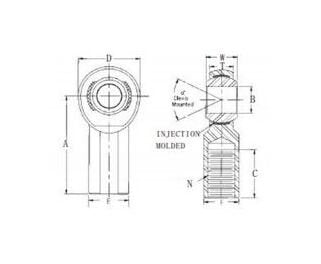

Product Specifications
Specifications Approx Weight
2.11 lbs
Specifications A Length 0015 0015
4.125 in
Specifications A Mis Angle Ref
17
Specifications Ball
1.875 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
1.0000 in
Specifications C Length 0062 0031
2.125 in
Specifications D Dia 0010 0010
2.750 in
Specifications N Thread Unf 3a
1 1/4-12
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-16
Specifications Static Radial Load
76,200 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
1.015 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
