Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
SKU:ROD-58e169
Premium XM/XF Series Rod Ends with Chromoly Steel construction for unmatched durability and performance in automotive and industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Chromoly Steel XM/XF Series Rod Ends are meticulously crafted to meet the rigorous demands of automotive vehicles, industrial machines, and various industries. Constructed with 6061-T6 Aluminum body material and heat-treated 52100 Bearing Steel ball material with HRC58-64 hard chrome plating, these rod ends offer exceptional durability and performance. Available in Male/Female and Left/Right variants, they provide precise functionality and reliability for diverse applications. With precise dimensions and high load-bearing capacity, these rod ends ensure optimal performance and longevity in challenging environments.

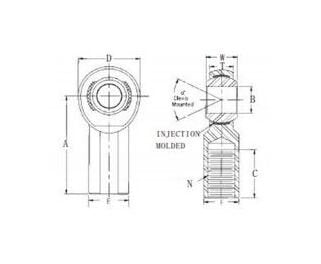

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.062 in
Specifications A Mis Angle Ref
13
Specifications Ball
0.437 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.1900 in
Specifications C Length 0062 0031
0.562 in
Specifications D Dia 0010 0010
0.625 in
Specifications N Thread Unf 3a
10-32
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-3
Specifications Static Radial Load
3,733 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.250 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.312 in
