Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
SKU:ROD-d43d8e
High-strength Chromoly Steel Rod Ends for precision and durability in automotive and industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Chromoly Steel Rod Ends from Monroe deliver unmatched strength and durability, featuring a body material of heat-treated Chromoly steel with hard chrome plating for enhanced longevity. The ball material, 52100 Bearing Steel, is also heat treated (HRC58-64) with hard chrome plating to withstand rigorous applications. These rod ends are designed for precision performance, available in both Male and Female variants, as well as Left and Right configurations making them versatile for various industries including automotive vehicles and industrial machines. With precise dimensions and high load-bearing capacity, these rod ends ensure optimal performance and reliability.

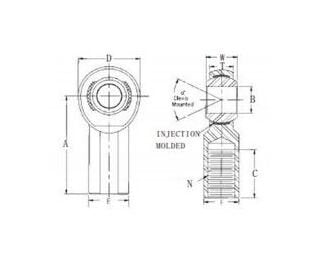

Product Specifications
Specifications Approx Weight
0.14 lbs
Specifications A Length 0015 0015
1.625 in
Specifications A Mis Angle Ref
12
Specifications Ball
0.719 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
0.937 in
Specifications D Dia 0010 0010
1.000 in
Specifications N Thread Unf 3a
3/8-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-6
Specifications Static Radial Load
9,544 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.406 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.500 in
