Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
SKU:ROD-5b6160
Durable Heavy Duty Chromoly Steel Rod Ends for Automotive and Industrial Applications
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Chromoly Steel Rod Ends - XM/XF Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Chromoly Steel Rod Ends - XM/XF Series are meticulously crafted with body material of 6061-T6 Aluminum and ball material of 52100 Bearing Steel, Heat Treated to HRC58-64 Hard Chrome Plated. These rod ends are available in Male/Female variants and Left/Right variants, offering versatility for various applications in automotive vehicles, industrial machines, and more. With precise dimensions and a static radial load capacity of 23,031 lbs, these rod ends ensure reliable performance and durability. Plus, the Nylon (Teflon®/Kevlar®) race material enhances functionality while meeting industry standards for quality and safety.

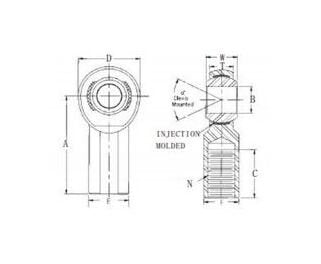

Product Specifications
Specifications Approx Weight
0.69 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
14
Specifications Ball
1.312 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications N Thread Unf 3a
3/4-16
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-12
Specifications Static Radial Load
23,031 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.687 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
