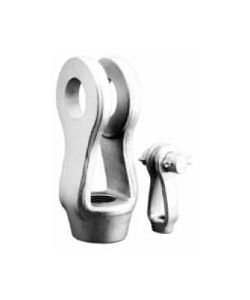

Heavy-Duty Clevises
Heavy-Duty Clevises
SKU:WIR-669ca0
Premium Heavy-Duty Clevises for secure and durable connections in various applications. Customizable options available.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



Our Heavy-Duty Clevises are precision-engineered for superior performance in demanding applications. Made from high-quality materials such as C-1035 and SA-182-F-11, and available in Stainless Steel, they offer exceptional durability and strength. With multiple finish options and customizable specifications, including thread type and pitch, these clevises ensure a secure and reliable connection. Each unit is designed with a 3:1 safety factor and complies with strict industry standards.

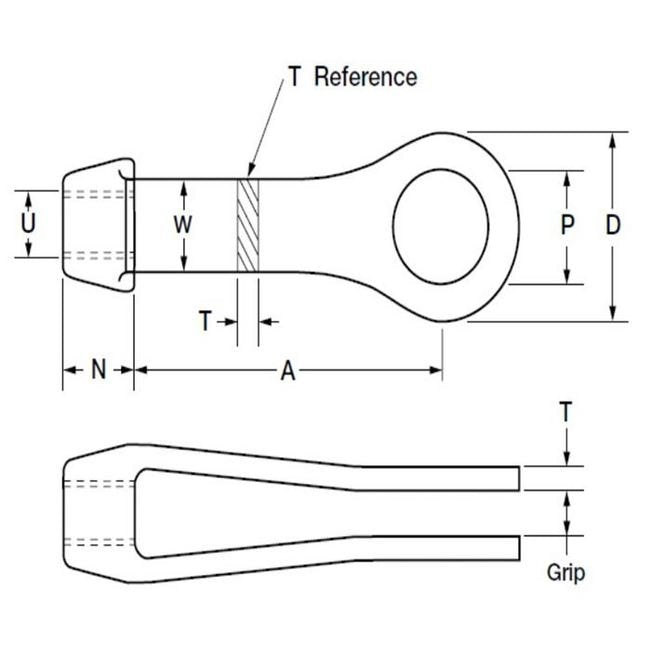

Product Specifications
Specifications A In
5 1/16
Specifications Clevis
3
Specifications D In
3
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
1 1/4
Specifications Pin Max P In
1 3/4
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
1/2 + 1/16-1/32
Specifications U Maximum Thread Tap In
1 3/8
Specifications Wll Lbs
15,000
Specifications Wt Lbs
4
Specifications W In
1 1/2
CAGE
0T9L4
NAICS
332510
PSC
4030
