Heavy-Duty Clevises

Heavy-Duty Clevises

SKU:WIR-61e06a

Premium Heavy-Duty Clevises for secure and reliable connections in diverse applications. Available in custom finishes and threading options.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Heavy-Duty Clevises

Heavy-Duty Clevises

$89.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Clevises

Heavy-Duty Clevises

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Heavy-Duty Clevises are expertly crafted from durable materials including C-1035 and SA-182-F-11, offering exceptional strength and reliability for various applications. With options for self-colored, galvanized, or plated finishes, and custom threading specifications, these clevises ensure secure connections and optimal performance. Designed with a 3:1 safety factor and high weight capacity, they meet stringent industry standards and are ideal for both consumer and institutional use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

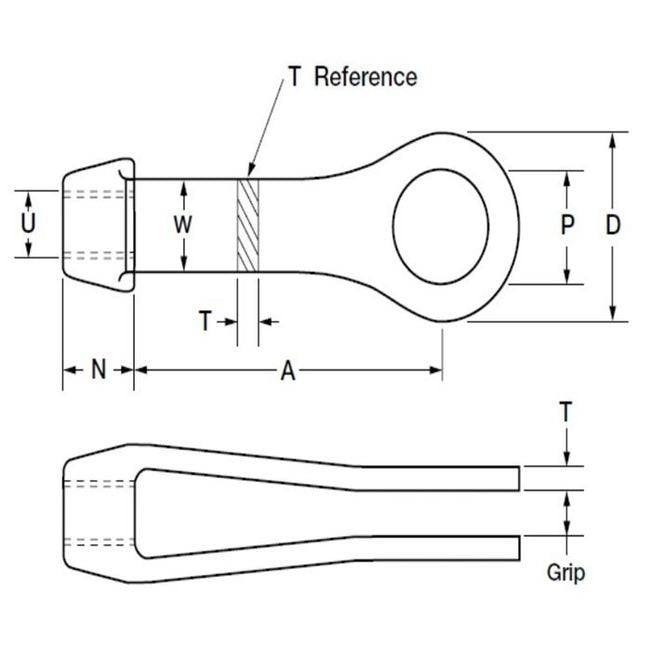

Product Specifications

Specifications A In
8
Specifications Clevis
6
Specifications D In
6
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
2 3/4
Specifications Pin Max P In
3
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
3/4 + 3/32-0
Specifications U Maximum Thread Tap In
2 1/2
Specifications Wll Lbs
54,000
Specifications Wt Lbs
26
Specifications W In
3
CAGE
0T9L4
NAICS
332510
PSC
4030
