Heavy-Duty Clevises for Wire Rope Hardware & Tools
Heavy-Duty Clevises for Wire Rope Hardware & Tools
SKU:WIR-5da4e4
Experience unmatched strength and precision with our Heavy-Duty Clevises. Options for various materials and finishes available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Clevises for Wire Rope Hardware & Tools
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Clevises for Wire Rope Hardware & Tools
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

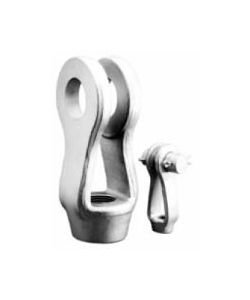

Our Heavy-Duty Clevises are crafted from high-strength C-1035, SA-182-F-11, or Stainless Steel, ensuring durability and reliability for heavy loads. With customizable options such as self-colored, galvanized, or plated finishes, these clevises cater to a range of needs. Each unit is designed with precision threads in U.N.C./U.N.F. Class 2 B, offering versatility for right or left-hand applications. Pins sold separately to accommodate various specifications. Meet institutional procurement requirements with custom Tap, Grip & Pin specifications tailored for safety and performance standards.
Product Specifications

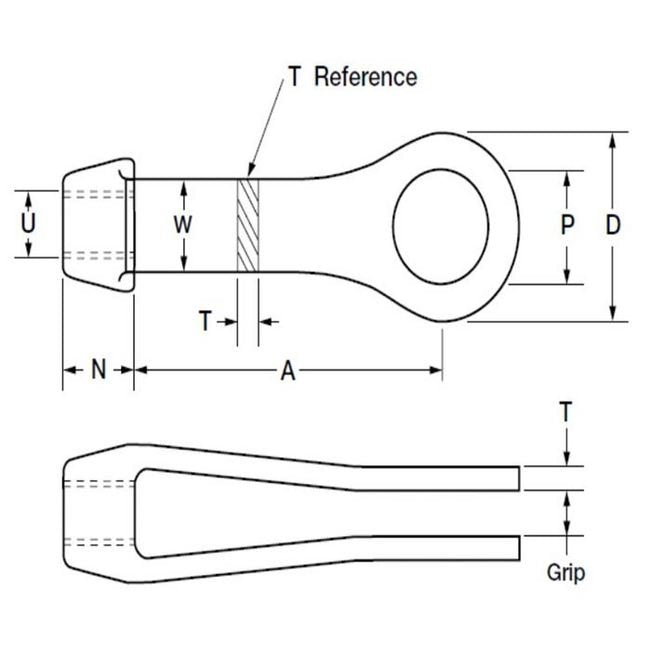

Specifications A In
4
Specifications Clevis
2 1/2
Specifications D In
2 1/2
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
1
Specifications Pin Max P In
1 1/2
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
5/16 + 1/32-0
Specifications U Maximum Thread Tap In
7/8
Specifications Wll Lbs
7,500
Specifications Wt Lbs
2 1/2
Specifications W In
1 1/4
CAGE
0T9L4
NAICS
333991
PSC
5110
