Heavy-Duty Clevises Kit

Heavy-Duty Clevises Kit

SKU:WIR-6f83e1

High-strength clevises for secure connections, various material finishes available.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Heavy-Duty Clevises Kit

Heavy-Duty Clevises Kit

$129.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Clevises Kit

Heavy-Duty Clevises Kit

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

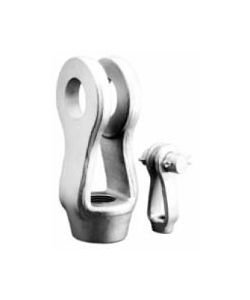

Our Heavy-Duty Clevises Kit is crafted from C-1035, SA-182-F-11, or Stainless Steel with options for different finishes like self-colored, galvanized, plated, or electro-polished. These clevises come with precise U.N.C./U.N.F. Class 2 B threads, available in both right or left-hand configurations. With a Working Load Limit (WLL) of up to 68,500 lbs and customizable pin specifications, these clevises offer exceptional strength and versatility for a wide range of applications. Please note that pins are sold separately to suit your specific needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

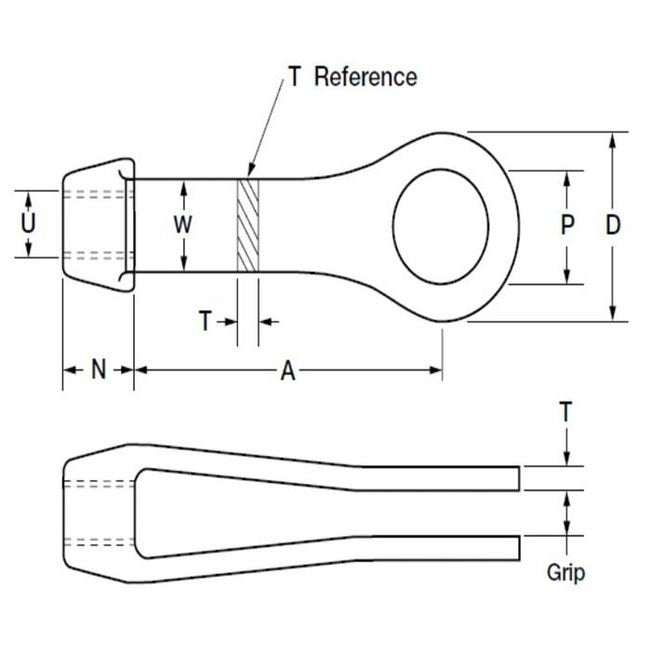

Product Specifications

Specifications A In
9
Specifications Clevis
7
Specifications D In
7
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
3
Specifications Pin Max P In
3 3/4
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
7/8 + 1/8-1/16
Specifications U Maximum Thread Tap In
3
Specifications Wll Lbs
68,500
Specifications Wt Lbs
36
Specifications W In
3 1/2
CAGE
0T9L4
NAICS
332510
PSC
4030
