Heavy-Duty Clevises Kit
Heavy-Duty Clevises Kit
SKU:WIR-5db0d3
Enhance wire rope connections with our Heavy-Duty Clevises Kit. High-grade materials, customizable specifications, and reliable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Clevises Kit
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Clevises Kit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

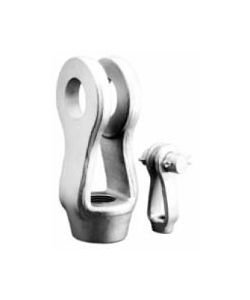

Upgrade your wire rope connections with our Heavy-Duty Clevises Kit. Crafted from high-grade C-1035 and SA-182-F-11 materials, available in stainless steel. Features include UNC/UNF Class 2 threads, various finish options, and customizable specifications for pins. With a Working Load Limit of 37,500 lbs and compliant with industry standards, these clevises ensure reliable performance in diverse applications.
Ready to Grow Without Cash Flow Constraints?

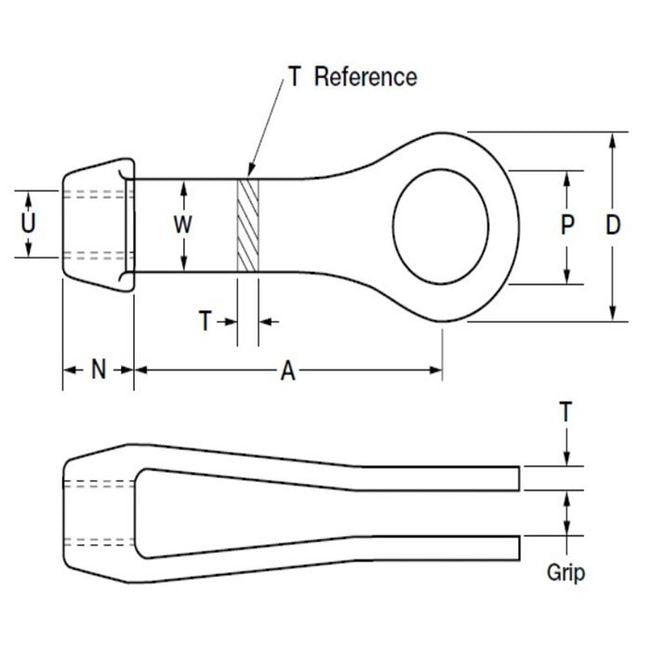

Product Specifications
Specifications A In
7
Specifications Clevis
5
Specifications D In
5
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
2 1/4
Specifications Pin Max P In
2 1/2
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
5/8 + 3/32-0
Specifications U Maximum Thread Tap In
2 1/8
Specifications Wll Lbs
37,500
Specifications Wt Lbs
16
Specifications W In
2 1/2
CAGE
0T9L4
NAICS
332510
PSC
4030
