Heavy-Duty Clevises Set

Heavy-Duty Clevises Set

SKU:WIR-e1b619

Heavy-Duty Clevises Set, ideal for heavy-duty applications, with 21,000 lbs WLL & custom specifications.

Regular price $149.99
Regular price Sale price $149.99
Sale

Initiate Order

Heavy-Duty Clevises Set

Heavy-Duty Clevises Set

$149.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Clevises Set

Heavy-Duty Clevises Set

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

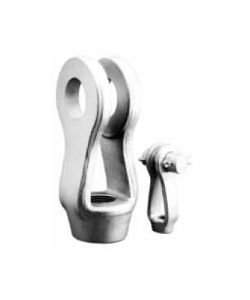

Our Heavy-Duty Clevises Set is crafted from high-quality materials, offering unparalleled strength and durability for heavy-duty applications. With options for self-colored, galvanized, or electro-polished finishes, these clevises come with custom tap, grip, and pin specifications. Each clevis has a Working Load Limit (WLL) of 21,000 lbs based on a 3:1 safety factor, ensuring reliable performance under demanding conditions. Pins are sold separately for added convenience. Whether you need right-hand or left-hand threads, with various finish options, our clevises are designed to meet the rigorous requirements of industrial and institutional projects.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

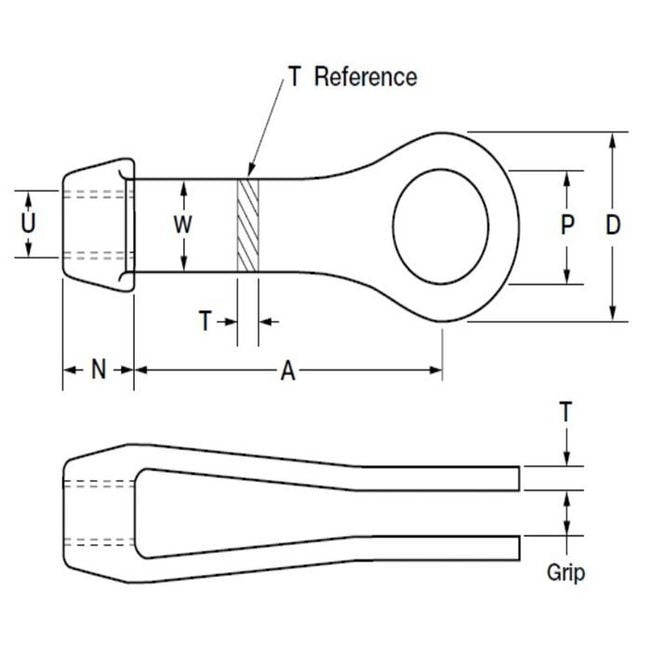

Specifications A In
5 15/16
Specifications Clevis
4
Specifications D In
4
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel | Galvanized Carbon Steel | Untreated Stainless Steel
Specifications N In
1 3/4
Specifications Pin Max P In
2 1/4
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications T In
1/2 + 1/16-1/16
Specifications U Maximum Thread Tap In
1 3/4
Specifications Wll Lbs
21,000
Specifications Wt Lbs
9
Specifications W In
2
CAGE
0T9L4
NAICS
332510
PSC
4030
