Stanspec div. of American Crane & Hoist →

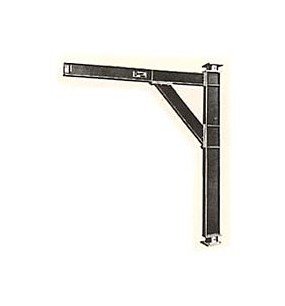

Heavy Duty Column Mast Jib Crane Model 800 CBM

Name: Heavy Duty Column Mast Jib Crane Model 800 CBM
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-fa82e9
Price: 3499.0 USD
Availability: OutOfStock

SKU:REL-fa82e9

Heavy-duty Jib Crane with versatile mounting options and adjustable height. Smooth rotation and easy installation.

$3,499.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Jib Cranes Model 800 CBM is a heavy-duty solution designed with rigid underbracing for maximum hook height. Equipped with self-aligning bearings for smooth 360° rotation using pressure grease lubrication, this crane features a structural mast that supports heavy loads efficiently, reducing floor pressure. Its versatile top bearing connection allows for ceiling, truss, wall, or column mounting. Easy to ship and install due to its sectional construction, its height is adjustable to fit various environments. For precise installation details, certified drawing No. SD-800-7T is available, ensuring optimal setup and operation.

Product Specifications

Electrification Electrification

Power Supply Extra Features

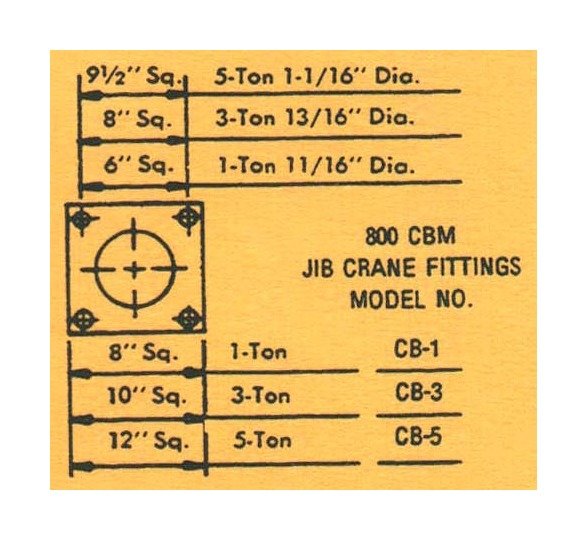

Anchor Bolts | Template

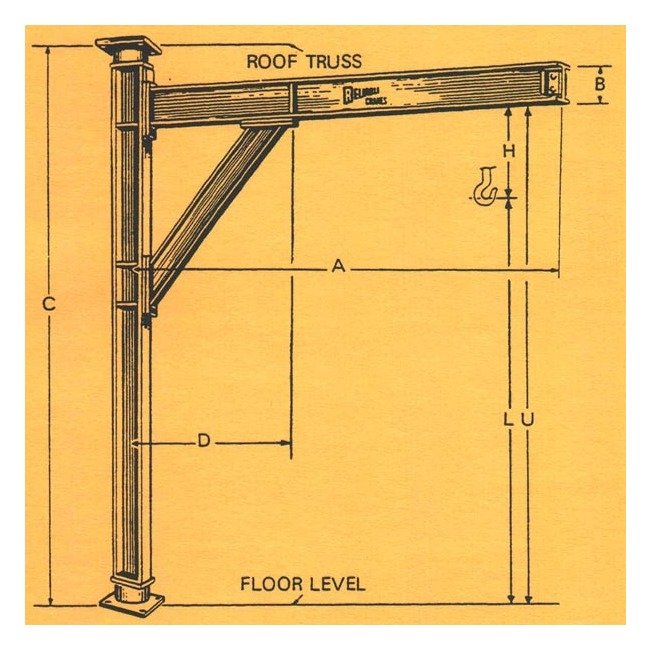

Specifications Boom Size B

8 inches

Specifications Capacity

1000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Knee Brace D

5'-0"

Specifications Max Height C

11'-6"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications Span A

16'-0"

Specifications Under Boom U

10'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

1240 lbs.

Heavy Duty Column Mast Jib Crane Model 800 CBM
