Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
SKU:REL-3eb760
Heavy Duty Column Mast Supported Jib Crane with 6000 lbs. Capacity and Versatile Mounting Options
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
$7,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

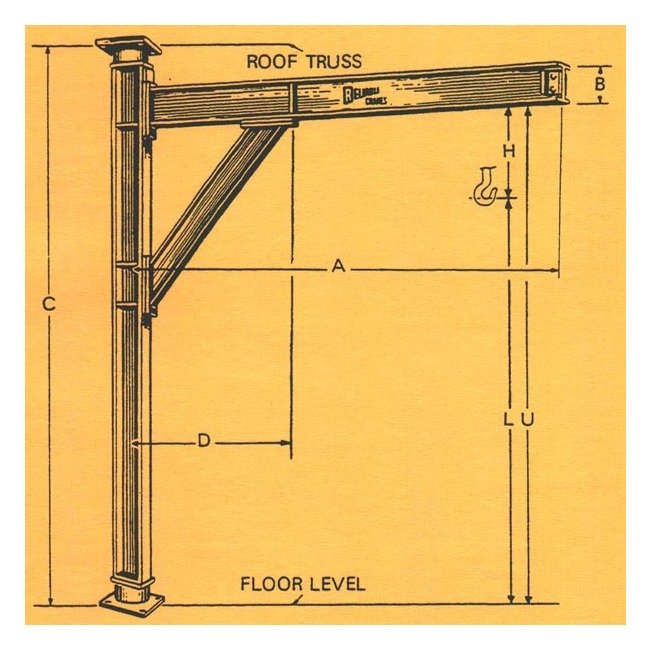

The Jib Crane Model 800 CBM is a heavy-duty solution designed for maximum hook height with rigid underbracing. Featuring self-aligning anti-friction bearings for smooth 360° rotation, this crane boasts a robust structural mast that minimizes floor loads. Its versatile top bearing connection allows for ceiling, overhead truss, wall, or column mounting. Easy to ship and install in sections, the crane offers adjustable height to suit diverse environments. For precise dimensions, refer to certified drawing No. SD-800-7T. With a 6000 lbs. capacity and various mounting options, this crane is ideal for heavy-duty industrial applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Size B
15 inches
Specifications Capacity
6000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
5'-0"
Specifications Max Height C
14'-0"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2245 lbs.
