Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
SKU:REL-bf572b
Maximize efficiency with the Heavy Duty Column Mast Supported Jib Crane Model 800 CBM. Versatile mounting options and precise engineering ensure optimal performance.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
$8,999.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane Model 800 CBM
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

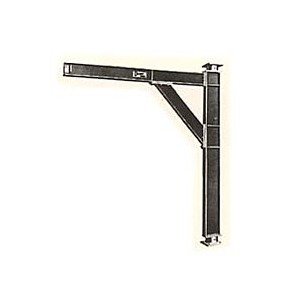

The Jib Crane Model 800 CBM is a robust solution designed for heavy lifting tasks. Featuring rigid underbracing for maximum hook height and self-aligning anti-friction bearings for smooth 360° rotation, this crane ensures efficient operation. Its heavy section structural mast supports top and bottom reduce floor loads, offering versatility in mounting options. With the ability to adjust the overall height to fit specific conditions and a capacity of 10000 lbs., this crane is ideal for heavy-duty industrial applications. Request certified drawings for precise installation dimensions.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

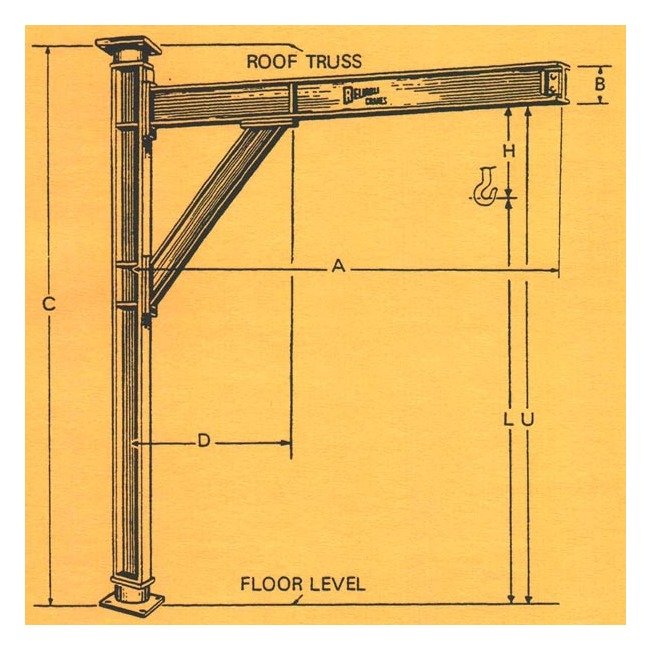

Specifications Boom Size B
24 inches
Specifications Capacity
10000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
7'-0"
Specifications Max Height C
15'-0"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3980 lbs.
