Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
SKU:REL-5f4cda
Heavy-duty Jib Crane Model 800 CBM with rigid underbracing for maximum hook height, self-aligning bearings, and versatile mounting options.
Regular price
$6,799.99
Regular price
Sale price
$6,799.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$6,799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$6,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

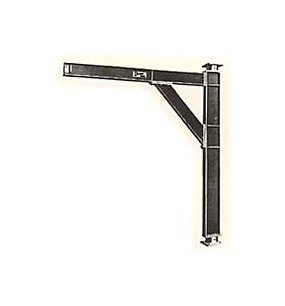

The Jib Crane Model 800 CBM is a heavy-duty solution with rigid underbracing for maximum hook height capacity. Featuring self-aligning anti-friction bearings for smooth 360° rotation, this crane boasts a heavy section structural mast supported top and bottom, reducing floor loads. Its versatile top bearing connection allows for ceiling, truss, wall, or column mounting. Designed for easy shipping and installation, adjustable height options are available. Request certified drawing SD-800-7T for precise installation dimensions.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features

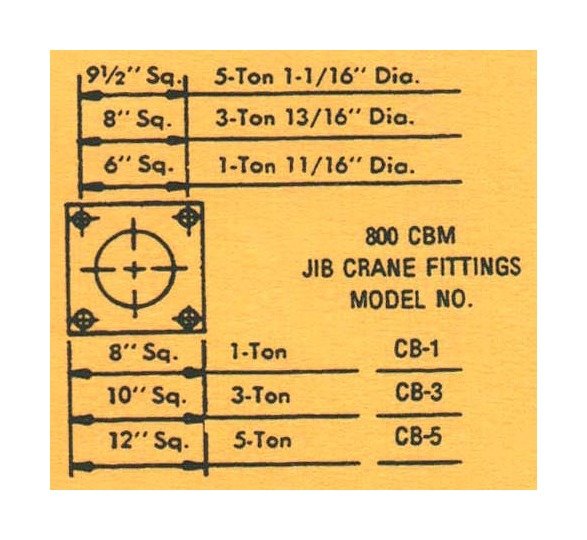

Anchor Bolts | Template

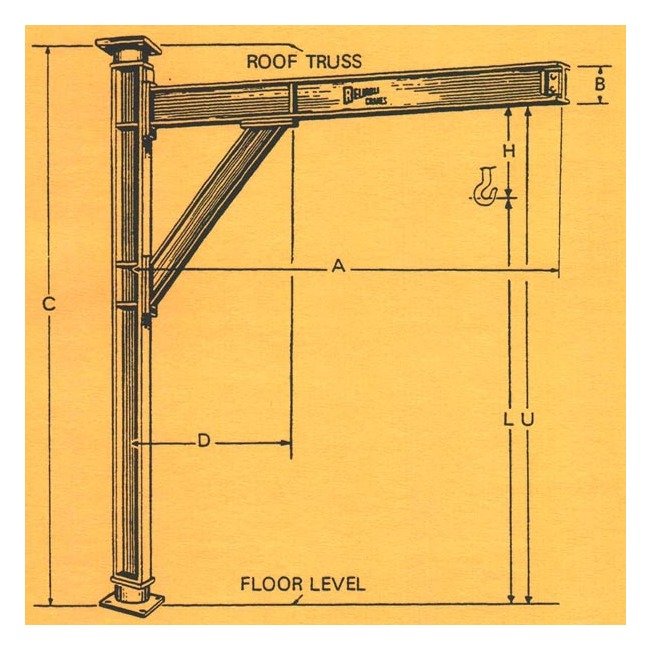

Specifications Boom Size B
18 inches
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
7'-0"
Specifications Max Height C
14'-0"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2795 lbs.
