Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
SKU:REL-e31f2d
Heavy Duty Jib Crane with Max Hook Height, Smooth Rotation, and Versatile Mounting Options for Efficiency in Industrial Settings.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

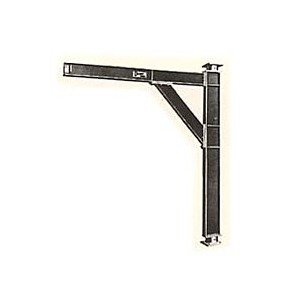

The Jib Crane Model 800 CBM is a heavy-duty solution designed to provide maximum hook height with rigid underbracing. Featuring self-aligning anti-friction bearings for smooth 360° rotation, this crane is ideal for heavy loads. Its structural mast allows for smaller floor loads and versatile mounting options including ceiling, truss, wall, or column support. With ease of shipping and field installation, adjustable height, and certified drawings available upon request, this jib crane offers reliability and efficiency for industrial applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features

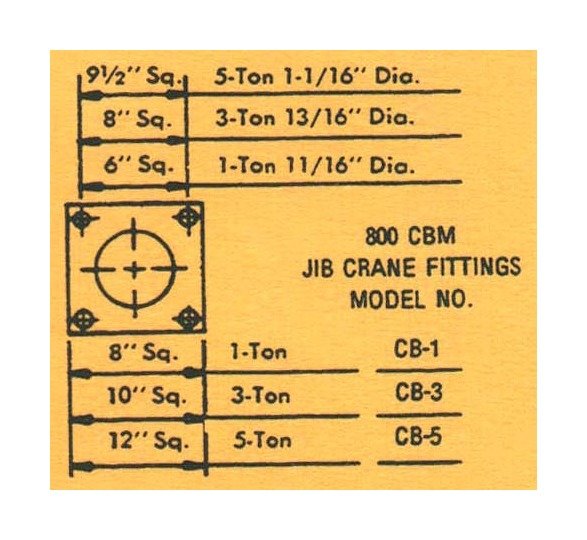

Anchor Bolts | Template

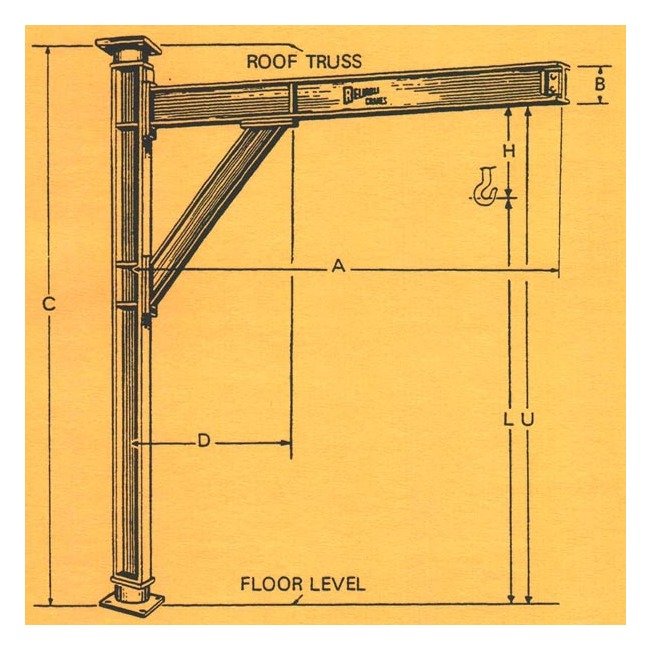

Specifications Boom Size B
18 inches
Specifications Capacity
8000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
6'-0"
Specifications Max Height C
14'-6"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
16'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3000 lbs.
