Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
SKU:REL-624411
High-performance Jib Crane for heavy-duty lifting tasks, offering 500 lbs capacity. Adjustable height and versatile mounting options. Certified installation drawing available.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$5,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

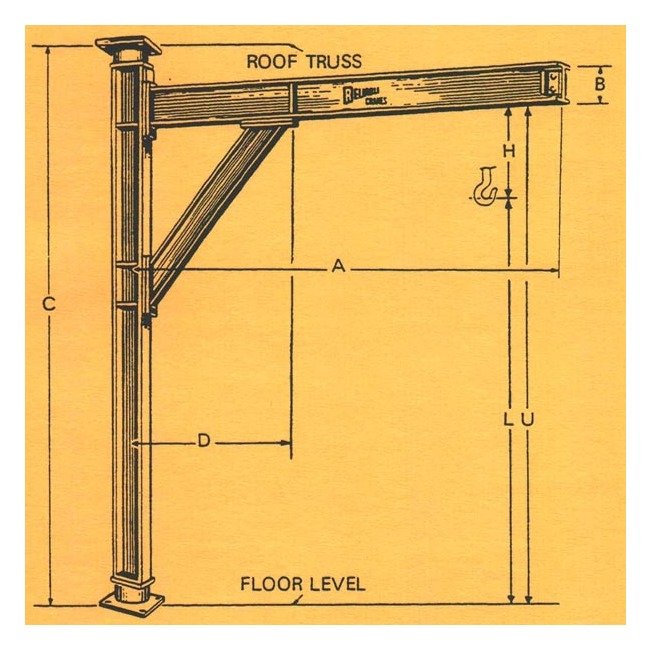

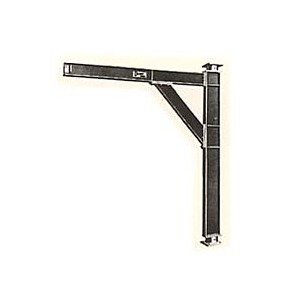

The Jib Cranes Model 800 CBM is a robust solution designed for heavy-duty applications. With rigid underbracing for maximum hook height, self-aligning anti-friction bearings for smooth 360° rotation, and a heavy section structural mast, this crane minimizes floor loads. Its versatile top bearing connection allows ceiling, overhead truss, wall, or column mounting. Constructed in sections for easy shipping and installation, the jib's height can be adjusted to fit any space. Certified drawing SD-800-7T provides specific installation dimensions, ensuring precise setup. Ideal for high-demand environments, this crane offers a capacity of 500 lbs.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features

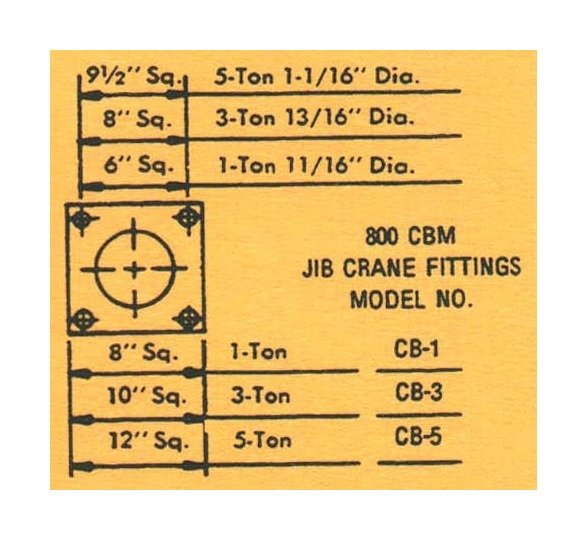

Anchor Bolts | Template
Specifications Boom Size B
8 inches
Specifications Capacity
500 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
7'-0"
Specifications Max Height C
11'-3"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1110 lbs.
