Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
SKU:REL-8ba270
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM. 6000 lbs. capacity, adjustable height, and easy installation for heavy-duty industrial use.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$5,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

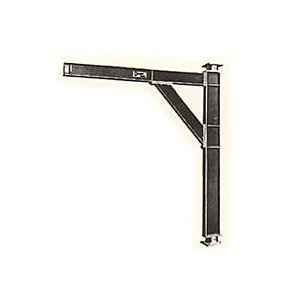

The Heavy Duty Column Mast Supported Jib Crane - Model 800 CBM is designed for maximum hook height with rigid underbracing. Featuring self-aligning anti-friction bearings for 360° rotation and heavy section structural mast support, this crane minimizes floor loads. Easy to install in sections, adjustable height, and certified for precise dimensions upon request. With a 6000 lbs. capacity and various mounting options, it's ideal for heavy-duty use in industrial settings.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features

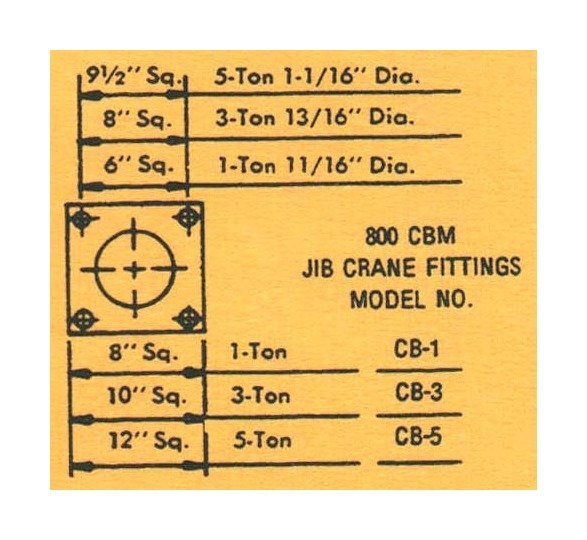

Anchor Bolts | Template

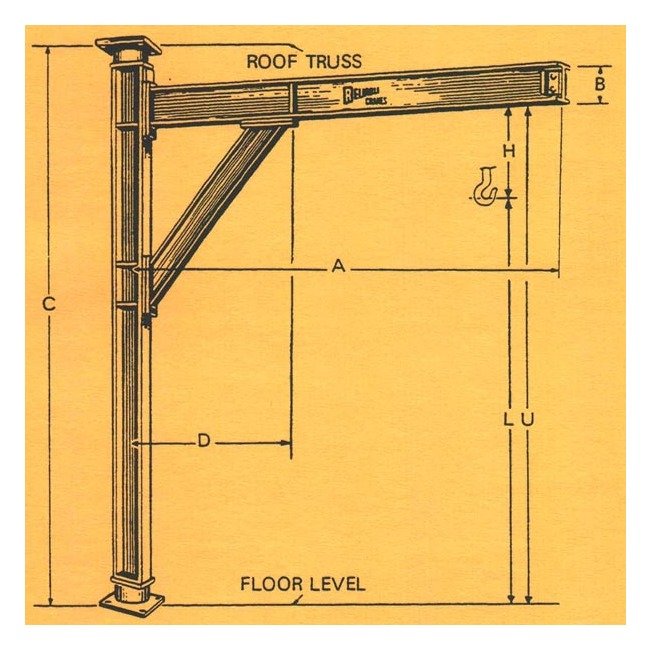

Specifications Boom Size B
12 inches
Specifications Capacity
6000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
3'-0"
Specifications Max Height C
14'-0"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
8'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1410 lbs.
