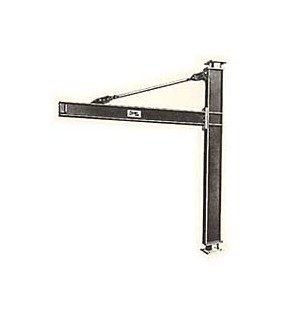

The Jib Crane Model 800 TRM is a heavy-duty solution designed for reliable performance. Featuring tension bracing for full trolley travel and self-aligning anti-friction bearings allowing 360° rotation, it offers exceptional functionality. With a heavy section structural mast supporting top and bottom, this crane minimizes floor loads. Its versatile top bearing connection allows ceiling, overhead truss, wall, or column mounting. Easy to ship and install in sections, the overall height is adaptable to suit various conditions. For precise installation dimensions, request certified drawing No. SD-800-7T. Built with a 1/2" allowance for upper mast bearing assembly shimming.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

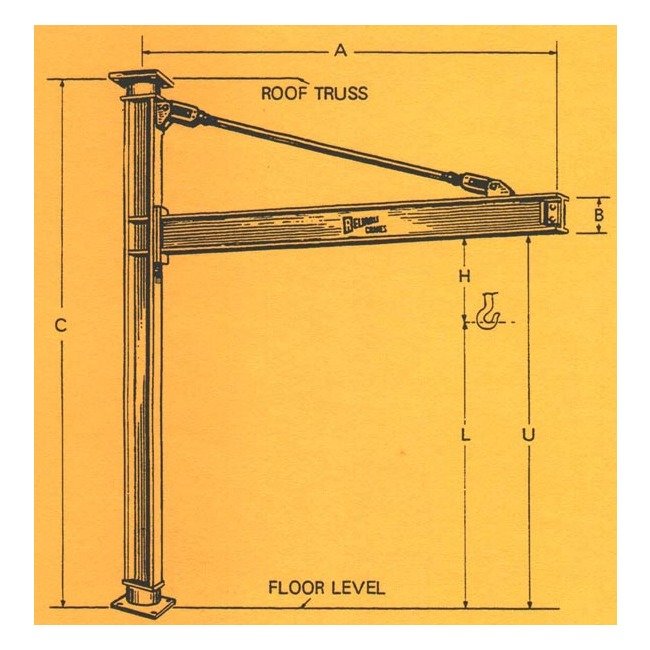

Specifications Boom Size B
12 inches
Specifications Capacity
10000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
18'-0"
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
12'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2125 lbs.
