Heavy Duty Column Mast Supported Jib Crane - Model 800 TRM
Heavy Duty Column Mast Supported Jib Crane - Model 800 TRM
SKU:REL-54d4d2
Heavy Duty Column Mast Supported Jib Crane with smooth 360° rotation and versatile mounting options.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane - Model 800 TRM
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane - Model 800 TRM
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jib Cranes Model 800 TRM is a robust solution designed for heavy-duty applications. Its tension bracing allows full trolley travel, supported by self-aligning anti-friction bearings for smooth 360° rotation. With a heavy section structural mast supporting top and bottom, this crane minimizes floor loads. The versatile top bearing connection offers multiple mounting options, including attachment to the ceiling, overhead truss, wall, or column. Easily customizable to fit specific height requirements, this crane is shipped in sections for convenient assembly on-site. For precise installation dimensions, request certified drawing No. SD-800-7T. Ensure a secure fit with the 1/2" allowance included for field shim of upper mast bearing assembly.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

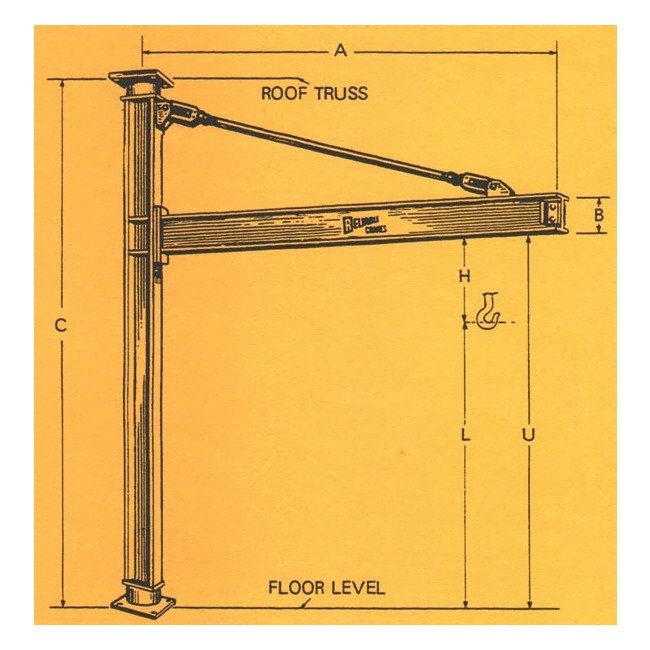

Specifications Boom Size B
12 inches
Specifications Capacity
10000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
20'-0"
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
16'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2660 lbs.
