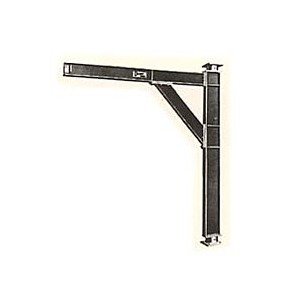

Heavy Duty Column Mast Supported Jib Crane Model CBM-800
Heavy Duty Column Mast Supported Jib Crane Model CBM-800
SKU:REL-63b6a1
Heavy Duty Jib Crane with 4000 lbs. capacity, 360° rotation, and versatile mounting options for industrial applications.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Crane Model CBM-800
$8,999.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Crane Model CBM-800
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Column Mast Supported Jib Crane Model CBM-800 is designed for maximum hook height with rigid underbracing. Equipped with self-aligning heavy-load anti-friction bearings for smooth 360° rotation, this crane features pressure grease lubrication for optimal performance. Its heavy section structural mast supports top and bottom, reducing floor loads. The crane can be attached to the ceiling, overhead truss, or wall/column, offering versatility in installation. With a capacity of 4000 lbs. and various mounting options, this jib crane is ideal for heavy-duty applications. Request certified installation drawing No. SD-800-7T for specific dimensions.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features

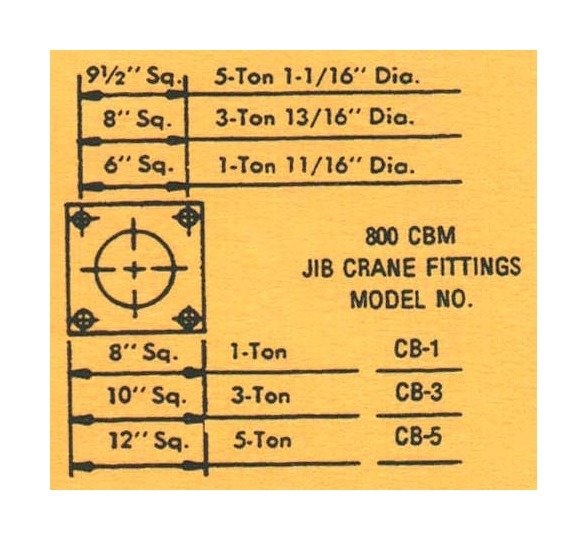

Anchor Bolts | Template

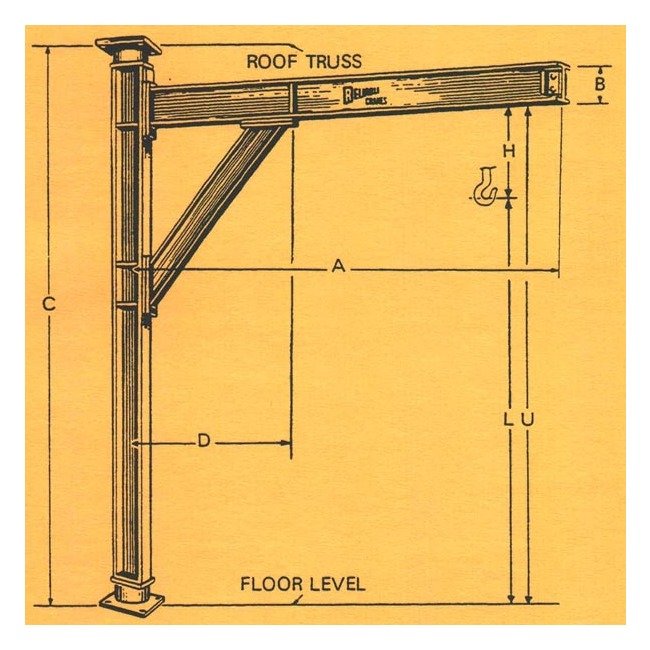

Specifications Boom Size B
10 inches
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
3'-0"
Specifications Max Height C
13'-6"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
8'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1185 lbs.
