Heavy Duty Column Mast Supported Jib Cranes Model 800 CBM
Heavy Duty Column Mast Supported Jib Cranes Model 800 CBM
SKU:REL-405907
Heavy-duty Jib Cranes with rigid underbracing, versatile mounting options, and adjustable height variations for efficient lifting operations.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy Duty Column Mast Supported Jib Cranes Model 800 CBM
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Column Mast Supported Jib Cranes Model 800 CBM
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

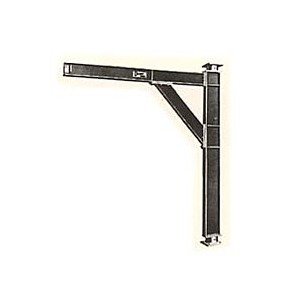

The Jib Cranes Model 800 CBM are expertly engineered for heavy-duty lifting, featuring rigid underbracing for maximum hook height. Equipped with self-aligning anti-friction bearings for seamless 360° rotation, these cranes ensure efficient operations. With heavy section structural mast support at the top and bottom, they reduce floor loads. The versatility of mounting options allows attachment to ceilings, overhead trusses, walls, or columns. Constructed in sections for easy shipping and installation, adjustable height variations cater to diverse spatial requirements. Request certified drawing No. SD-800-7T for precise installation dimensions.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

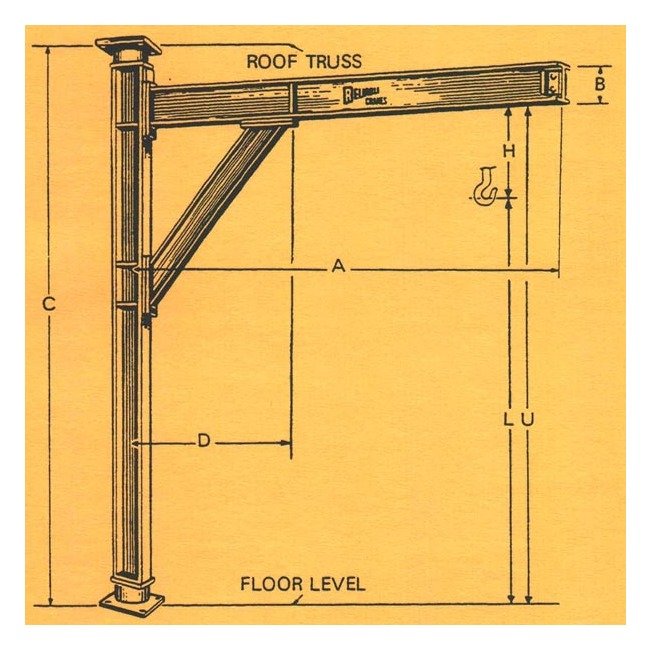

Specifications Boom Size B
12 inches
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
5'-0"
Specifications Max Height C
14'-0"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1800 lbs.
