Heavy-Duty Compression Load Cells
Heavy-Duty Compression Load Cells
SKU:LOA-9d9255
Accurate Heavy-Duty Compression Load Cells for precise force measurement in rugged conditions.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Heavy-Duty Compression Load Cells
$1,299.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Compression Load Cells
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

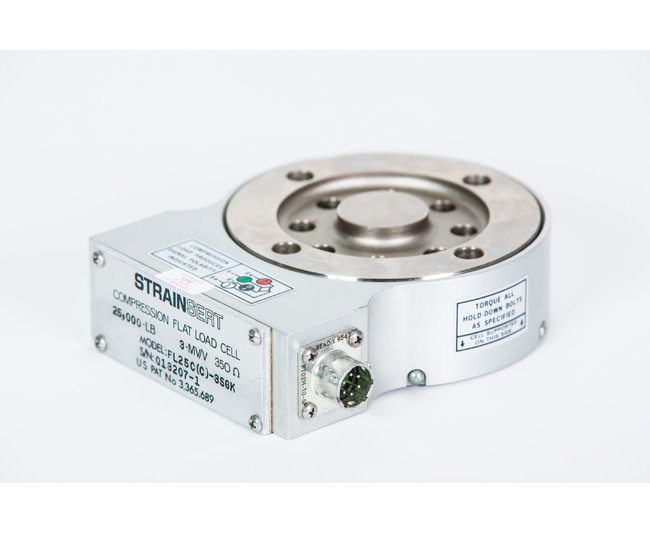

Our Heavy-Duty Compression Load Cells are designed for precision force measurement in compression applications ranging from 250 to 2.5 million lbs. Featuring a low profile, rugged construction, and high-frequency dynamic load sensing capabilities, these load cells offer exceptional performance. With pressure compensating sealed strain gages and counterbored mounting holes, they ensure accurate and reliable measurements. The compact and lightweight design, along with high static overload capacity, make them ideal for industrial and institutional use. Trust in the durability and precision of our Compression Load Cells for your demanding applications.
Product Specifications

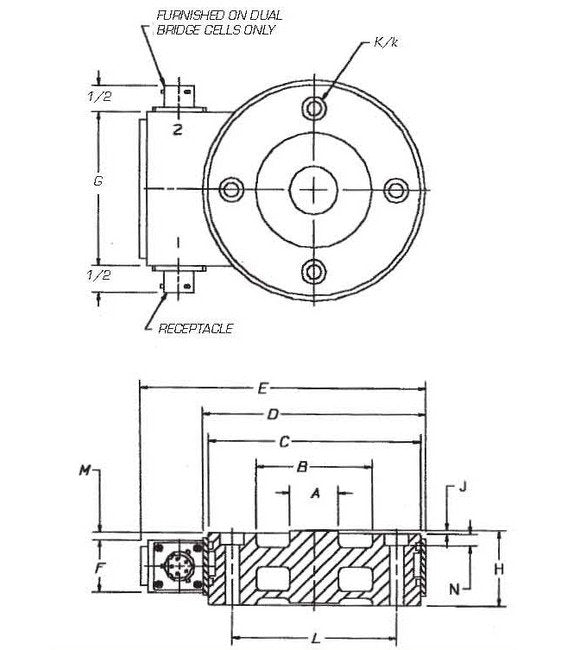

Dimensional Drawing Dimensional Drawing
Strainsert Compression Load Cell.jpg
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL300C_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Diameter
3-1/4 in
Specifications B Diameter
8-1/4 in
Specifications Configuration
Dual Bridge | Single Bridge
Specifications C Diameter
11-3/4 in
Specifications D Diameter
12-1/4 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
4-1/4 in
Specifications K Inside Diameter
15/32 in
Specifications K Outside Diameter
11/16 in
Specifications Lifting Holes Bc Diameter
10
Specifications Load Capacity
300,000 lb
Specifications L Diameter
10 in
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
1/2 in
