Heavy-Duty Compression Load Cells
Heavy-Duty Compression Load Cells
SKU:LOA-e6f814
Discover unmatched durability and precision with our Heavy-Duty Compression Load Cells equipped with sealed strain gages for high-frequency dynamic measurements.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Heavy-Duty Compression Load Cells
$2,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Compression Load Cells
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

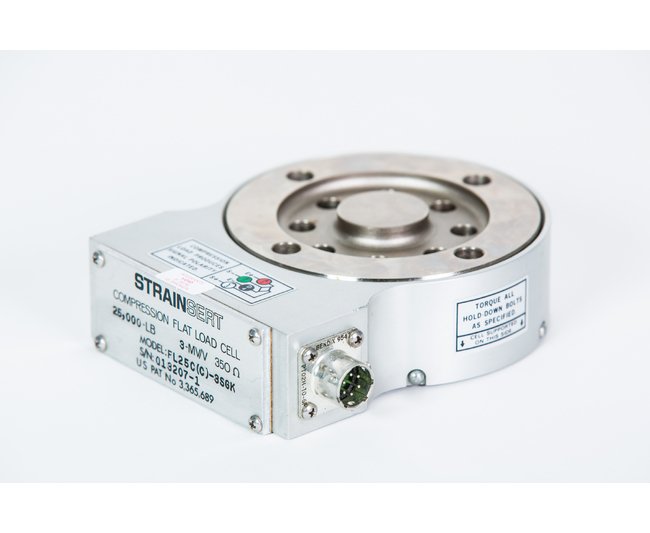

Experience unparalleled durability and precision with our Heavy-Duty Compression Load Cells. Designed for forces ranging from 250 to 2.5 million lbs, these load cells feature a low profile, rugged construction, and high static overload capacity. With pressure compensating sealed strain gages, our load cells ensure accurate measurements in high-frequency dynamic environments. Compliant with federal procurement standards and industry certifications, these load cells are the ideal choice for both consumer and institutional buyers.
Product Specifications

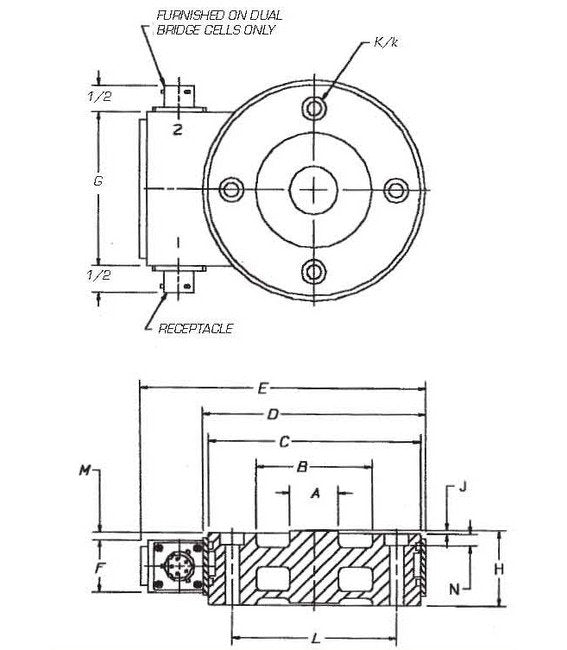

Dimensional Drawing Dimensional Drawing
Strainsert Compression Load Cell.jpg
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
150%FS
Performance Specs Safe Static Overload Without Structural Failur
200%FS
Performance Specs Safe Static Overload Without Zero Shift
150%FS
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Diameter
5-1/2 in
Specifications B Diameter
11-1/2 in
Specifications Configuration
Dual Bridge | Single Bridge
Specifications Connector Type
Connector | Permanently Attached Cable
Specifications C Diameter
16-1/2 in
Specifications D Diameter
17 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
6 in
Specifications K Inside Diameter
9/16 in
Specifications K Outside Diameter
1-1/8 in
Specifications Lifting Holes Bc Diameter
14
Specifications Load Capacity
1,000,000 lb
Specifications L Diameter
14 in
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
5/8 in
