Heavy-Duty Concrete Insert Mount Jib Crane
Heavy-Duty Concrete Insert Mount Jib Crane
SKU:REL-e1a789
Robust 500 lbs. concrete insert jib crane for heavy-duty applications. Offers reliability and efficiency in extreme conditions. Includes electrification options for seamless power supply. Easy installation with anchor bolts and template.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy-Duty Concrete Insert Mount Jib Crane
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Concrete Insert Mount Jib Crane
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 600 CIM Concrete Insert Mount Jib Crane is a robust lifting solution designed for heavy-duty applications, with a capacity of 500 lbs. It features a 20-foot span, 10-foot under boom clearance, and a 6-inch boom size for versatile operation. With a maximum height of 16 feet 6 inches, this crane offers exceptional strength and stability. Ideal for high-cycle operations and general-purpose use, this crane ensures reliable performance in extreme conditions. Equipped with electrification options like collector rings and control conductors, it provides efficient power supply for seamless operation. The inclusion of anchor bolts and a template enhances installation convenience, making it a top choice for industrial settings.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

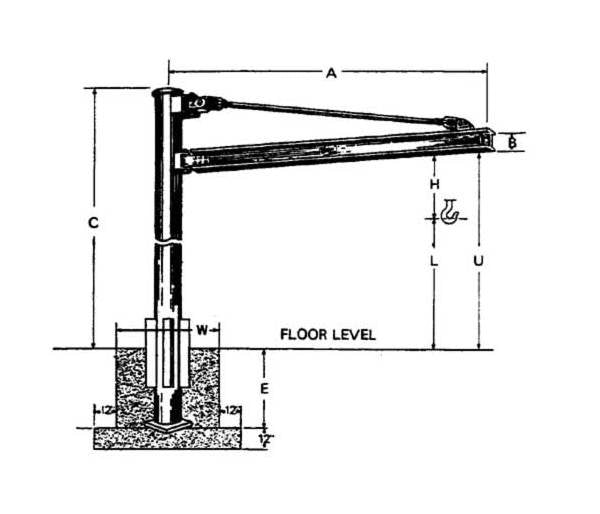

Specifications Boom Size B
6 inches
Specifications Capacity
500 lbs.
Specifications Footer Depth E
4'-0"
Specifications Footer Width W
5'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
16'-6"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1320 lbs.
