Heavy-Duty Concrete Insert Mount Jib Crane - Model 200 CIM
Heavy-Duty Concrete Insert Mount Jib Crane - Model 200 CIM
SKU:REL-6f1997
Versatile Model 200 CIM Jib Crane - Perfect for Standard Duty Applications
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy-Duty Concrete Insert Mount Jib Crane - Model 200 CIM
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Concrete Insert Mount Jib Crane - Model 200 CIM
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 200 CIM Concrete Insert Mount Jib Crane is engineered for standard duty applications, designed to handle a live load plus hoist and trolley weight within its rated full load capacity. Ideal for general material handling, this crane features limited boom deflection for safe hoist travel, precision upper head and lower roller bearings, and an adjustable bottom roller assembly. Meeting or exceeding A.I.S.C. Specifications, it offers a 360° rotation option for continuous load handling.

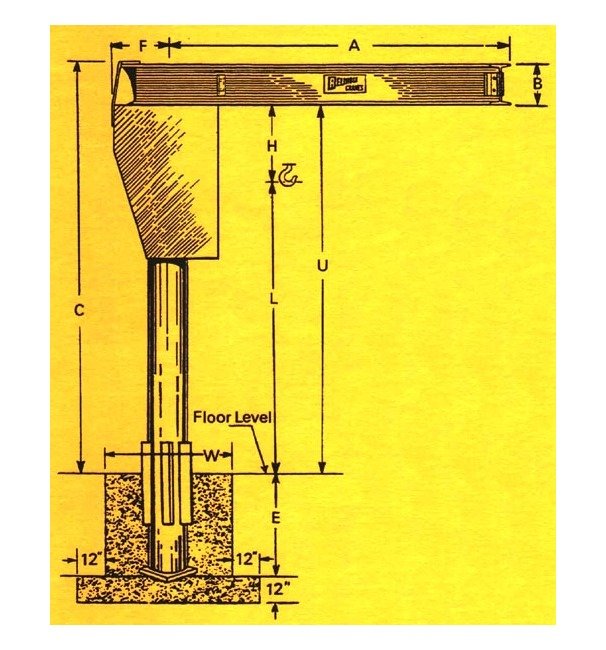

Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Size B
12 inches
Specifications Capacity
1000 lbs.
Specifications Footer Depth E
4'-0"
Specifications Footer Width W
5'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
11'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1770 lbs.
