Heavy-Duty Container Dumper - HDDP Series 103 Inch
Heavy-Duty Container Dumper - HDDP Series 103 Inch
SKU:CON-df68bb
Heavy-Duty Container Dumper with 4000 lb capacity, 135° tilt, 5 hp motor, meets ISO 9001:2015 & UL standards.
Regular price
$5,879.99
Regular price
Sale price
$5,879.99
Unit price
per
Initiate Order
Heavy-Duty Container Dumper - HDDP Series 103 Inch
$5,879.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Container Dumper - HDDP Series 103 Inch
$5,879.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

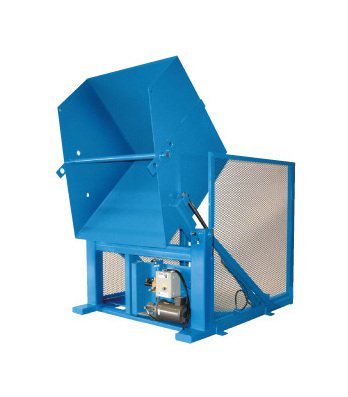

The Heavy-Duty Container Dumper from Advance Lifts is designed for demanding applications exceeding six cycles per hour or more than one shift a day. With a robust 4000 lb capacity and a full 135-degree tilt, this dumper ensures efficient material handling. Featuring a 5 hp continuous duty motor, machine-grade double-acting cylinders, and UL-approved controllers, it guarantees reliable performance. Made in the USA, this dumper comes with a 10-year warranty and meets ISO 9001:2015 and UL standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories

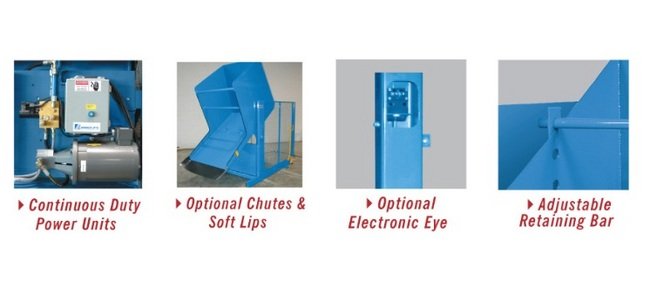

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits
Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

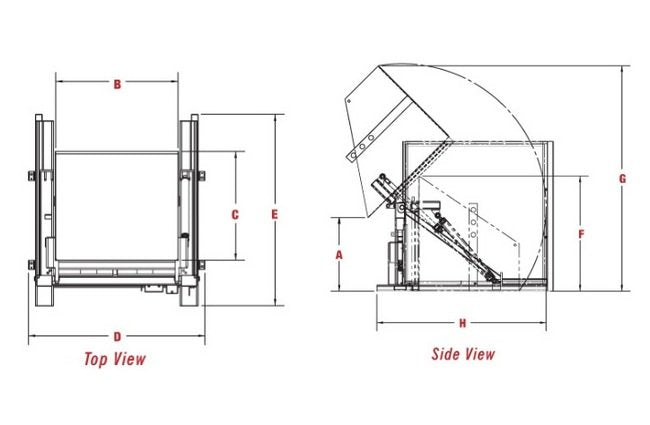

Specifications Approximate Weight
2200 lb
Specifications Arc Height G
137 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
79 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
60 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
103 in
Specifications Overall Width D
78 in
Specifications Series
HDDP
Specifications Speed
48 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
99 in
